AC COB LED MODULE 18W 210-240V 50Hz without driver dimming function

Basic Information

Place of Origin:	China
Brand Name:	TYF
Certification:	Rohs CE CB
Model Number:	TYF-DQE57Q1823E1

Minimum Order Quantity:	500
Price:	1.7-2.3usd/pcs
Payment Terms:	T/T

Get Best Price Contact Now

Detail Information

Highlight:

AC COB LED module 18W

AC LED module without driver

dimmable LED module 210-240V

Product Description

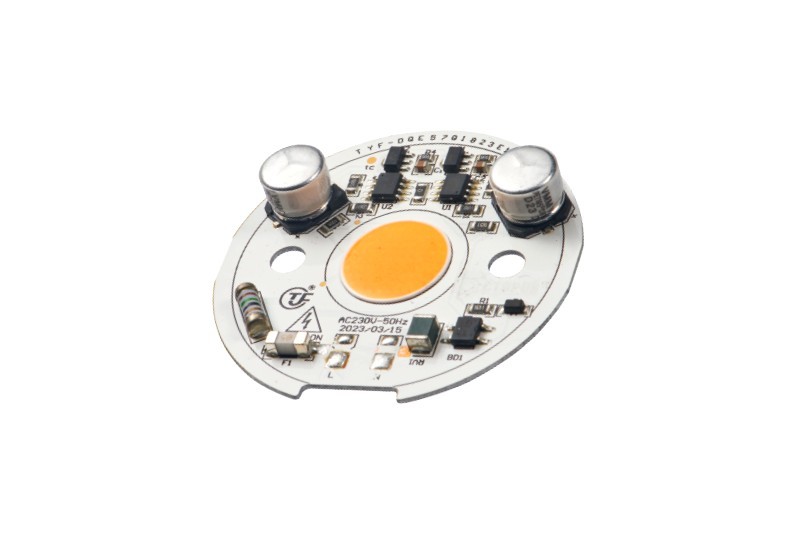

AC COB LED MODULE 18W 210-240V 50Hz without driver dimming function

Key Features

Connected directly to AC voltage without driver
Module with integrated components
Economical one-piece solution
High efficiency, high power factor and low harmonic distortion
High color rendering index (≥90)
High luminous efficacy 95LM/W
Three-year warranty

Certification Information

Safety standard	EN62031, EN 62471
Electromagnetic compatibility	EN55015, EN 61000-3-2, EN 61547

Electrical Parameters

Input Voltage	AC210-240Vac (Limit voltage 200-264Vac)
Input Current	90mA
Frequency	50Hz
Input Power	18W±5% (@230V)
Power Factor	>95
Surge	L-N=1KV
PCB Surge Capacity	1.5KV
Ambient Temperature	-25-45°C
Tc Temperature	t<85°C
Reduced Flicker	<5%
Dimming	TRIAC
