AC COB 10w Led Module , Environmental Protection High Power Led Module

Basic Information
Place of Origin: Shenzhen, china
Brand Name: TYF
Certification: CE CB UL ROHS
Model Number: D38
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: box
Delivery Time: 15 workdays
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 10000
Detail Information
Model: DQ038 Diameter: φ37
Voltage: 220/110V Wattage: 10W
CCT: 3000K 4000K 6000K CRI: 80
Efficacy(lm/w): 120lm/w PF: >0.9
THD: 20% Dimming: YES
Highlight:

driverless led module

,

high power led module


Product Description

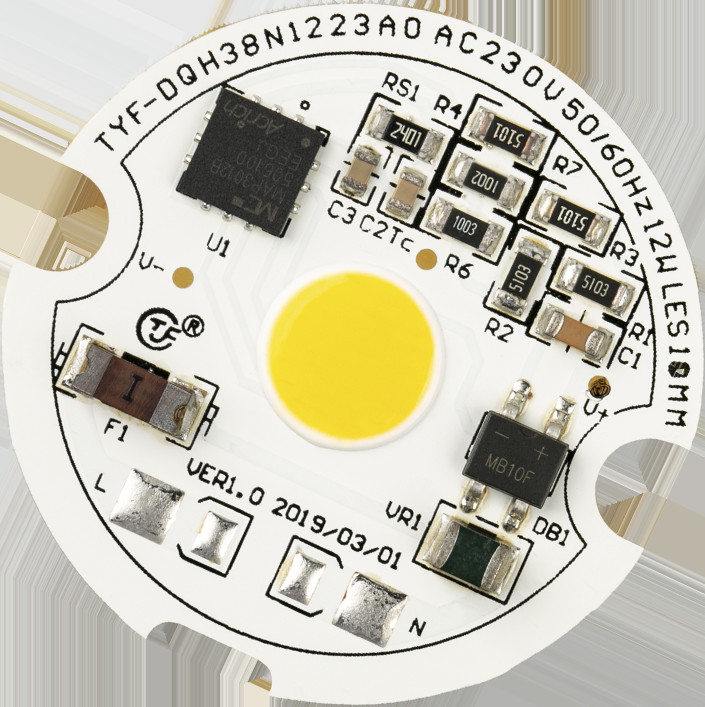

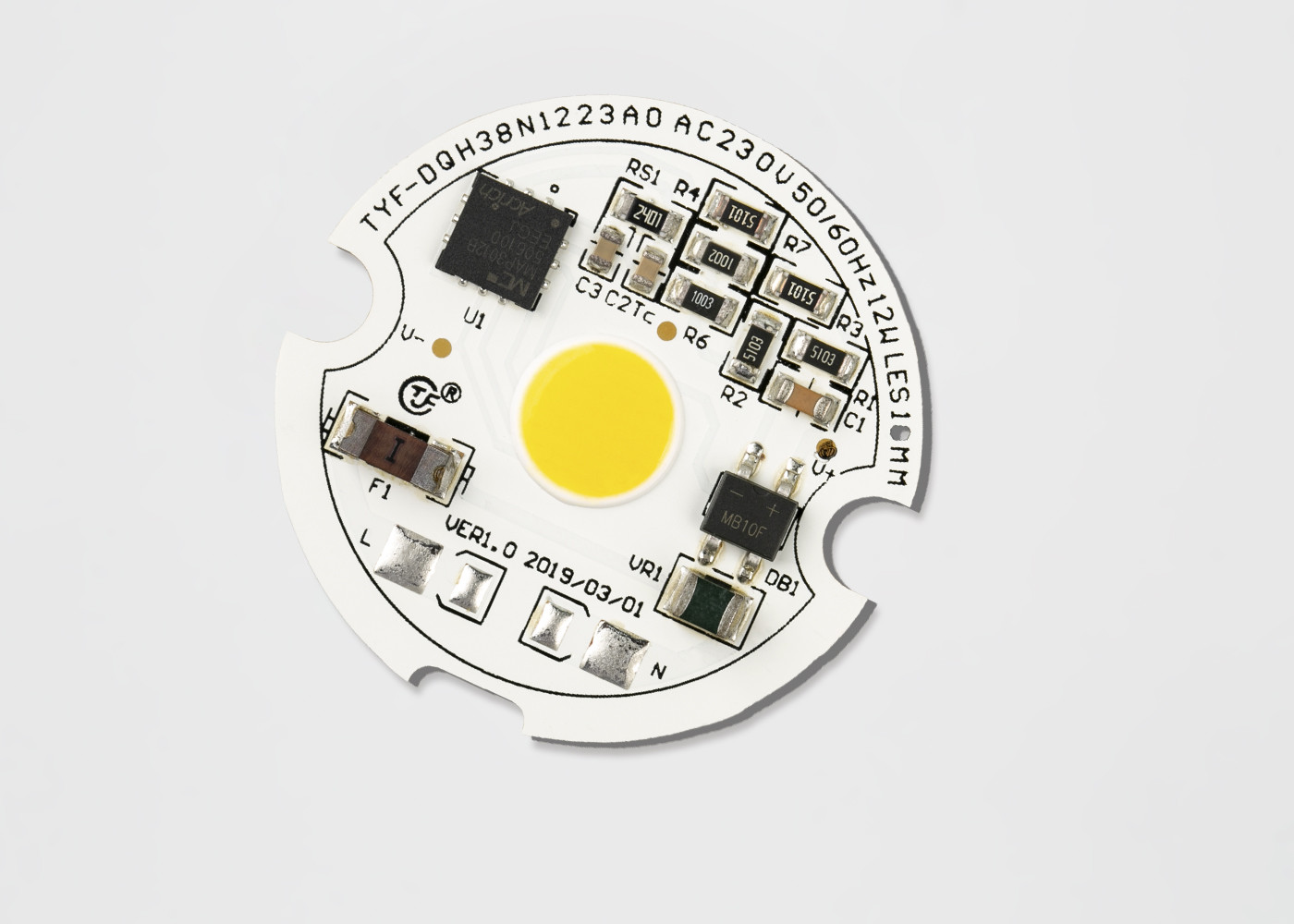

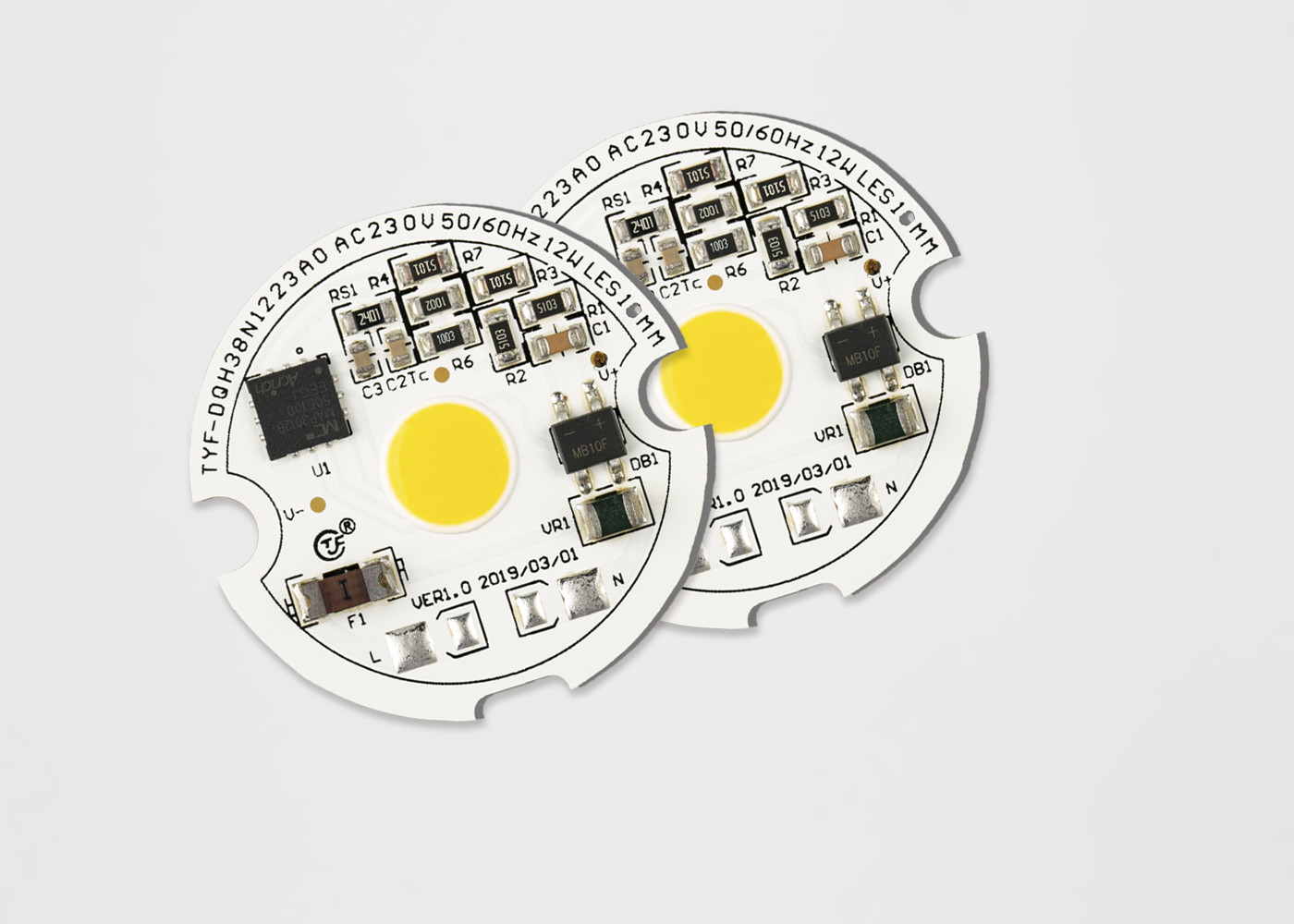

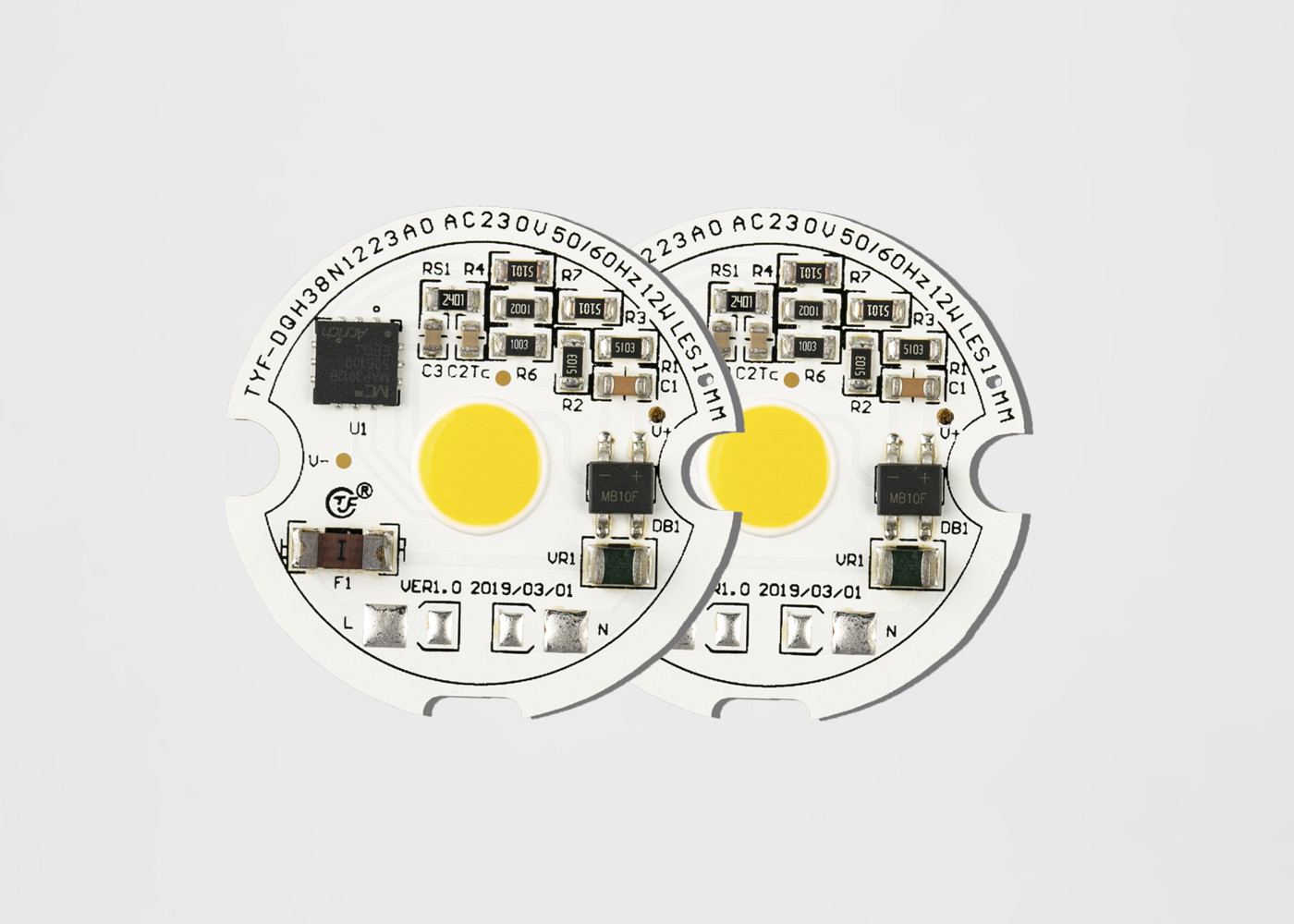

AC COB LED indoor sport light down light 110V/230V 10W 12W 3000K 4000K 6000K driver on board Aluminum PCB



AC COB 10w Led Module , Environmental Protection High Power Led Module 0

  • Connects to AC Line Voltage Directly
  • High PF and low THD
  • High performance and High brightness
  • Long Life and high reliability
  • Low EMI
  • Simple BOM
  • Conform to CE and UL Compliant
  • ROHS and REACH Compliant
  • Easy assembly

AC COB 10w Led Module , Environmental Protection High Power Led Module 1



DOB
X1 X2-X5 X6 X7-X8 X9-X10 X11-X12 X13X14 X15X16 X17 X18 X19 X20 X21X22
Product Code

Client

Code

IC Code

Power

Code



Voltage Code



Serial Num.

LED

Code



CCT

Code



SDCM CRI Code Luminance Year Month

Serial

Num.

  Module Code       Case Code Serial Num.           Serial Num.

1) product code: C=Client Module D=Self Module

2) Client Code & Module Code: if ①=C then 4 digit for client code else for self module code

3) IC Code: one character for IC

4) Power Code:

Power Code
01—99W 100W 120W 150W 200W 250W 300W 350W 400W 450W 500W
01-99 A0 B0 C0 D0 E0 F0 G0 H0 J0 K0



5) Voltage Code:11=110V,12=120V,22=220V,23=230V

6) CCT Code



CCT Code(K)

1800

-

2000

2000

-

2200

2200

-

2400

2500

-

2700

2700

-

2900

3000

-

3200

3200

-

3400

3500

-

3700

4000

-

4300

4500

-

4800

5000

-

5500

5800

-

6300

6000

-

6500

6500

-

7000

18 20 22 25 27 30 32 35 40 45 50 58 60 65



AC COB 10w Led Module , Environmental Protection High Power Led Module 2



AC COB 10w Led Module , Environmental Protection High Power Led Module 3



AC COB 10w Led Module , Environmental Protection High Power Led Module 4



Electrical & Optical Characteristics(Ta=25℃) Table 2-1



ITEM SYMBOL UNIT TYPICAL Value
Input Voltage Vin V 230
Input Current IF mA 42.35
Operating Frequency F Hz 50/60
Input Power P W 9.431
Power Factor PF 0.969
Total Harmonic Distortion THD 21.6%
Dimming Type RNA □ TRIAC □ PWM □ 0-10V □ DALI ☑ DMX □ Smart □ Other
Surge Capacity Vs KV 0.5
Electric Strength(AC) Ve KV -
Operating/Case Temperature Ta/Tc 25/85
LED Parameters COB
Luminous Flux Φv Lm 1068.3
Luminous Efficiency ηv Lm/w 113.3
Color Temperature CCT K 4068
Color Rendering Index Ra/CRI 82.3/75.4
Light Distribution - - -
Viewing Angle 2θ 1/2 Deg. -



Optical properties

Chromaticity Bins



TYF complies with the ANSI C78.377A standard for its chromaticity bin structure. For each ANSI quadrangle for the CCT range of 2700K to 6500K, TYF provides 5 Bins and 3 Bins.



Table 4-1 5 step Bins

AC COB 10w Led Module , Environmental Protection High Power Led Module 5



CCT Steps Cx Cy a b theta
2700K 5 0.4578 0.4101 0.01350 0.00700 53.70
3000K 5 0.4338 0.403 0.01390 0.00680 53.22
3500K 5 0.4073 0.3917 0.01545 0.00690 54.00
4000K 5 0.3818 0.3797 0.01565 0.00670 53.72
5000K 5 0.3447 0.3553 0.01370 0.00590 59.62
5700K 5 0.3287 0.3417 0.01243 0.00533 59.09
6000K 5 0.3123 0.3282 0.01115 0.00475 58.57



Table 4-2 3 step Bins

CCT Steps Cx Cy a b theta
2700K 3 0.4578 0.4101 0.00810 0.00420 53.70
3000K 3 0.4338 0.403 0.00834 0.00408 53.22
3500K 3 0.4073 0.3917 0.00927 0.00414 54.00
4000K 3 0.3818 0.3797 0.00939 0.00402 53.72
5000K 3 0.3447 0.3553 0.00822 0.00354 59.62
5700K 3 0.3287 0.3417 0.00746 0.00320 59.09
6000K 3 0.3123 0.3282 0.00669 0.00285 58.57





 Typical Electrical & Optical Curves



Figure 4-2-1 Relative Power vs. Voltage, Ta =25℃

AC COB 10w Led Module , Environmental Protection High Power Led Module 6

Figure 4-2-2 Relative Luminous Flux vs. Voltage, Ta =25℃

AC COB 10w Led Module , Environmental Protection High Power Led Module 7



Figure 4-2-3 Radiant Pattern, Ta =25℃

AC COB 10w Led Module , Environmental Protection High Power Led Module 8



AC COB 10w Led Module , Environmental Protection High Power Led Module 9





ITEM SYMBOL UNIT Value
Power Dissipation Pd W 12.6
AC Current(RMS) IF mA 58
AC Voltage(RMS) Vin V 200~240
LED Junction Temperature Tj-LED 110
IC Junction Temperature Tj-IC 150
Top of the IC temperature IC Tp 100
LED Thermal Resistance (Junction / Soldering point) Rthj-s ℃/W 20
IC Thermal Resistance (Junction / Soldering point) Rthj-s ℃/W -
Operating Temperature Top -20~+85
Storage Temperature Ts -30~+100
ESD Sensitivity(HBM) Vesd KV ±2
Soldering Temperature(Reflow) Tsld -
Soldering Temperature(Hand) Tsld 350 3S





AC COB 10w Led Module , Environmental Protection High Power Led Module 10

AC COB 10w Led Module , Environmental Protection High Power Led Module 11

Notes:

1) All dimensions are in millimeters.(Tolerance:±0.2mm)

2)Scale: None



AC COB 10w Led Module , Environmental Protection High Power Led Module 12

Note:

1)TYF Opto. DOB Module is Recommended to keep the junction temperature under maximum junction temperature spec.(Table 2-4).

LED lead temperature and IC top case temperature measured with thermocouple. LED and IC unction temperatures can be calculated using the formulas as follow.

Ts_max=Tj_max-Rθj-s * Pd

For Example:

If LED lead temperature and IC top case temperature are 90℃ then the LED junction temperature

Tj=Ts_max+Rθj-s*Pd=90℃ + 12 ℃/W* 1 W = 102 ℃

and the IC junction temperature

Tj=Ts_max+Rθj-s*Pd=90 ℃ + 15℃/W*2 W= 120 ℃

Silicone Resin of DOB (AC-COB) Handing

AC COB 10w Led Module , Environmental Protection High Power Led Module 13

AC COB 10w Led Module , Environmental Protection High Power Led Module 14



AC COB 10w Led Module , Environmental Protection High Power Led Module 15



TYF Opto. LED modules products, packed in plastic Tray, according to different size, XX PCs each plastic Tray, as shown in the following. products without plastic box packed in bubble bags, in order to prevent the outside pressure, choose different bubble bag, according to the product size in each pack of XX products, packaged product will be stored in the form of carton and sealed, as shown in the following.

1) xx PCS LED module per Tray 4) Box information & packing

2)Tray stack and taping, XX LED module

trays and additional 1 dummy trays each up of

box. Add silica gel (1 each) on top of the tray

3) Sealing packing

AC COB 10w Led Module , Environmental Protection High Power Led Module 16
