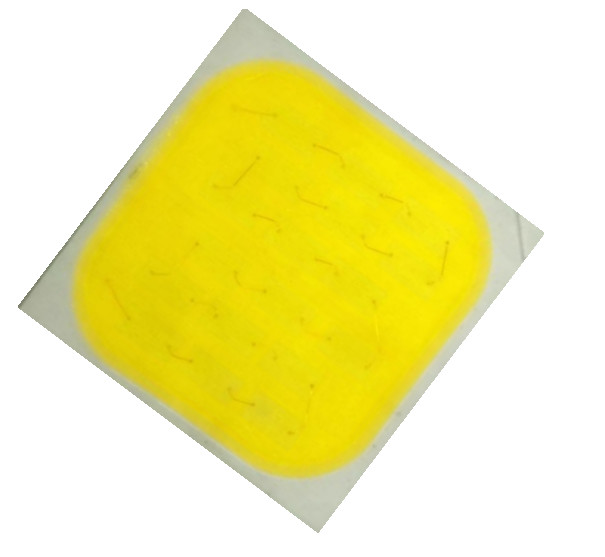

54V 18V 7070 SMD Bead Chips High Power 7w 9w For Spotlight

Basic Information

Place of Origin:	China
Brand Name:	TYF
Certification:	LM 80-9000 hours
Model Number:	S-E7-90-RA-TH

Minimum Order Quantity:	50K
Price:	Negotiable
Packaging Details:	Vacuum packaging,4000 pcs/reel
Delivery Time:	5-7 working days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	>1000,000,000 pcs/week

Get Best Price Contact Now

Detail Information

Leds:	7070	Beam Angle:	120°
Dimension:	7.0mm×7.0mm×0.7mm	CRI:	70
Color Temperature:	2600-8000K	Wattage:	7W
Limiting Power:	9W	Voltage Range:	54V
Luminous Efficiency:	230-240lm/w	JunctionTemperature:	120ºC
OperatingTemperature:	-40ºC To +105ºC	Certificate:	ROHS LM80
Highlight:	7070 SMD Bead Chips , 7w SMD Bead Chips , Spotlight SMD LED Chip

Product Description

TH 7070 led chip 54V smd led factory Wholesaler 18V high power high efficiency 7w 9w spotlight

Details:

Item name: 7W SMD 7070

Product type: EMC7070

Part Number:S-E7-90-RA-TH

Voltage: 54V

Place of Origin: ShenZhen, China

MOQ: 5000 pcs

applications for the technology:

Track lights
Spotlights
Streetlights
High bays
UFO lights
Floodlights

Electrical-optical Characteristics

Part Number	Voltage(V)	Power(W)	CCT(K)	CRI	Efficacy@20mA
S-E7-90-RA-TH	53-55	7W( Max 9W)	2700	70	220-230
			3000	70	220-230
			4000	70	230-240
			5000	70	230-240
			6000	70	225-235
			6250	70	225-235
			6500	70	220-230
			2700	80	210-220
			3000	80	210-220
			4000	80	220-230
			5000	80	220-230
			6000	80	215-225
			6250	80	215-225
			6500	80	210-220

Reliability Test Items And Conditions

Serial No.	Test Item	Reference standard	Test condition	Sample Quantity(pcs)	Failure Quantity(pcs)
1	High and low temperature shock	JESD22-A104E	(-40℃15min)-------+120℃(15min),↑↓10mins,200cycles	22	0
2	High Temperature Storage	JESD22-A103D	+100℃,1000h	22	0
3	Low Temperature Storage	JESD22-A119	-40℃,1000h	22	0
4	High Temperature,High Humidity,Aging test	JESD22-A101C	IF=150MA T=+85℃,RH=85%1000h	22	0
5	High-temperature operation	IESLM80-2015	IF=150MA T=+105℃,1000h	22	0
6	Low temperature operation	JESD22-A108D	IF=150MA T=-40℃,1000h	22	0
7	Moisture/Reflow SensitivityTest	J-STD-020E	Precondition:60℃.60%RH.168H Tsld=260℃.10sec. 3Reflows	22	0

54V 18V 7070 SMD Bead Chips High Power 7w 9w For Spotlight 0

54V 18V 7070 SMD Bead Chips High Power 7w 9w For Spotlight 1

Taping Specifications:

54V 18V 7070 SMD Bead Chips High Power 7w 9w For Spotlight 2

Key Specifications/Special Features:

1. LM 80-9000 hours passed,long lifespan,more than 54000 hours

2. Good color consistency, High CRI,High LM

3. 99.99% goldwire from Heraeus inside ,better perfermance

4. Customer design is welcomed

Primary Competitive Advantages:

Strong R&D Forces

One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
World standard CNAS Accredited Laboratory.
Launch highly-competitive new products seasonally.
Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.
