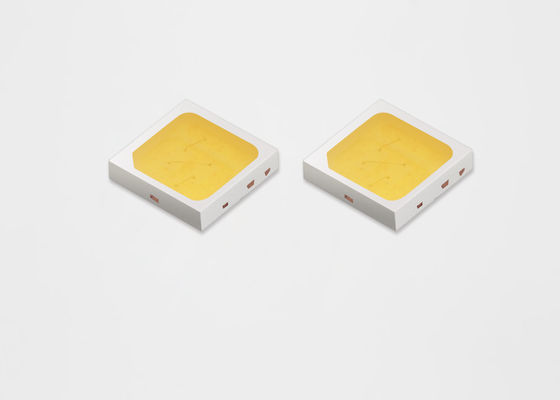

3030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving

Basic Information
Place of Origin: China
Brand Name: TYF
Certification: LM 80-9000 hours
Model Number: S-Y3-10-21-PK
Minimum Order Quantity: 50K
Price: Negotiable
Packaging Details: Vacuum packaging,4000 pcs/reel
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: >1000,000,000 pcs/week
Detail Information
Leds: 3030 Package Material: PCT
Beam Angle: 120° Dimension: 3.0mm×3.0mm×0.65mm
CRI: 70 -80 Color Temperature: 2600-8000K
Wattage: 1W Voltage Range: 3V 6V
Luminous Efficiency: 140-170lm/w OperatingTemperature: -40ºC To +105ºC
JunctionTemperature: 120ºC Certificate: ROHS LM80
Highlight:

3030 SMD LED Chip 3V

,

3030 SMD LED Chip 1W

,

Energy Saving 3030 LED


Product Description

3030 smd led chip bridgelux 3V 6V 1W 140lm/w-170lm/w energy saving



Details:

Item name: 1W SMD 3030 3V/6V series

Product type: PCT3030(S-Y3-10-21-PK)

Voltage: 3/6/V series (High Voltage 9V 18V 36V 54V also available)

Place of Origin: ShenZhen, China

Model: TYF SMD 3030

MOQ: 4000 pcs



The TYF3030 package with higher effiency and CRI, low power consumption. wide beam angle.

It perfectly solves the requirements for high efficiency and long lifetime





Application

Track Light  .Spot Light . Street Light .  High Bay . UFO Light. Flood Light



Product Details

Part Number

Voltage(V)

Current(mA)

Power(W)

CCT(K)

Efficacy@CRI70(LM/W)

Efficacy@CRI80(LM/W

S-Y3-10-12-PK  3 300 1 6500-8000 150-160 140-150
5500-6500 160-170 150-160
S-Y3-10-21-PK 6 150 1 3800-5500 160-170 150-160
2600-3800 150-160 140-150



Electrical-Optical Characteristics @3V

3030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 0

Electrical-Optical Characteristics @6V

3030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 1



Dimension



3030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 2

3030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 3



3030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 43030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 53030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 63030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 73030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 8



Packing:



3030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 93030 SMD LED Chip Bridgelux 3V 6V 1W 140lm/W-170lm/W Energy Saving 10





Specifications:

Key Specifications/Special Features:

1. LM 80-9000 hours passed,long lifespan,more than 54000 hours

2. Good color consistency, High CRI,High LM

3. 99.99% goldwire from Heraeus inside ,better perfermance

4. Customer design is welcomed
