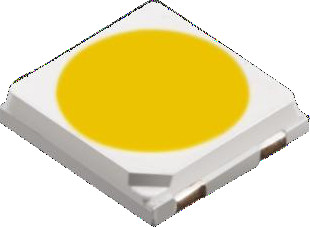

SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving

Basic Information
Place of Origin: China
Brand Name: TYF
Certification: LM 80-9000 hours
Model Number: S-Y3-10-21-F3
Minimum Order Quantity: 50K
Price: Negotiable
Packaging Details: Vacuum packaging,4000 pcs/reel
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: >1000,000,000 pcs/week
Detail Information
Leds: 3030 Package Material: PCT
Beam Angle: 120° Dimension: 3.0mm×3.0mm×0.65mm
CRI: 70 Color Temperature: 2600-6500K
Wattage: 1W Voltage Range: 3V 6V
Luminous Efficiency: 150-160lm/w OperatingTemperature: -40ºC To +105ºC
JunctionTemperature: 120ºC Certificate: ROHS LM80
Highlight:

3030 SMD LED Chip

,

PCT3030 SMD White LED

,

High Lumen 3030 LED


Product Description

smd led chip 3030 3V/6V PCT3030 high efficiency smd white led high lumen energy saving​



Details:

Item name: 1-2W SMD 3030 3V/6V series

Product type: SMD 3030

Voltage: 3/6/V series (High Voltage 9V 18V 36V 54V also available)

Place of Origin: ShenZhen, China

Model: TYF SMD 3030

MOQ: 4000 pcs



The TYF3030 package with higher effiency and CRI, low power consumption. wide beam angle.

It perfectly solves the requirements for high efficiency and long lifetime





Application

Track Light  .Spot Light . Street Light .  High Bay . UFO Light. Flood Light



Product Details

Part Number

Voltage(V)

Current(mA)

Power(W)

CCT(K)

Efficacy@CRI70(LM/W)

Efficacy@CRI80(LM/W

S-Y3-10-12-F3  3 300 1 6500-8000 140-150 130-140
5500-6500 150-160 140-150
S-Y3-10-21-F3 6 150 1 3800-5500 150-160 140-150
2600-3800 140-150 130-140




Electrical-Optical Characteristics @3V

SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 0



Electrical-Optical Characteristics @6V

SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 1



Dimension



SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 2

SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 3



SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 4SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 5SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 6SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 7SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 8



Packing:



SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 9SMD LED Chip 3030 3V/6V PCT3030 High Efficiency SMD White LED High Lumen Energy Saving 10





Specifications:

Key Specifications/Special Features:

1. LM 80-9000 hours passed,long lifespan,more than 54000 hours

2. Good color consistency, High CRI,High LM

3. 99.99% goldwire from Heraeus inside ,better perfermance

4. Customer design is welcomed





Primary Competitive Advantages:

Strong R&D Forces

  • One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
  • World standard CNAS Accredited Laboratory.
  • Launch highly-competitive new products seasonally.
  • Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.

Extensive Application Experience & Quality Commitment

  • Strict control over raw materials selection.
  • 3 Years Warranty at least.
  • Reliable long life span; Good Quality Raw Material.
  • More than 13 years' experience in LED Field.
  • Supported many government lighting projects.

Outstanding Service Level

  • Professional Sales Team backing up with top experienced engineers in LED field.
  • Best Quality & Best Price & Best Service.
  • Professional customization and OEM service.

More Info. about TYF

  • Top 3 LED manufacturer
  • Obtained 200+ patents
  • 12000+ square meters
  • SGS, TUV, BV, ISO9001 audited factory
  • 400+ employees
  • 3 production line, SMD workshop, COB workshop, SMT workshop
  • 100KK SMD LED per month
  • 3KK COB LED per month
  • 10KK other LEDs per month
