20W 30W Flip Chip Cob Led No Elector Magnetism Interference

Basic Information
Place of Origin: Shenzhen
Brand Name: TYF
Certification: CE,RoHs
Model Number: MF2514
Minimum Order Quantity: Negotiation
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000 PCS/day
Detail Information
Emitting Color: Warm White,Natural White,Cool White Chip Material: Bridgelux
Type: COB LED Application: COB LED Grow Lamp,led Flood
Product Name: Flexible Flip Chip Cob Led Power: 20W 30W
High Light:

30W Flip Chip Cob Led

,

Bridgelux Flip Chip Cob Led

,

Flexible Flip Chip Cob Led


Product Description

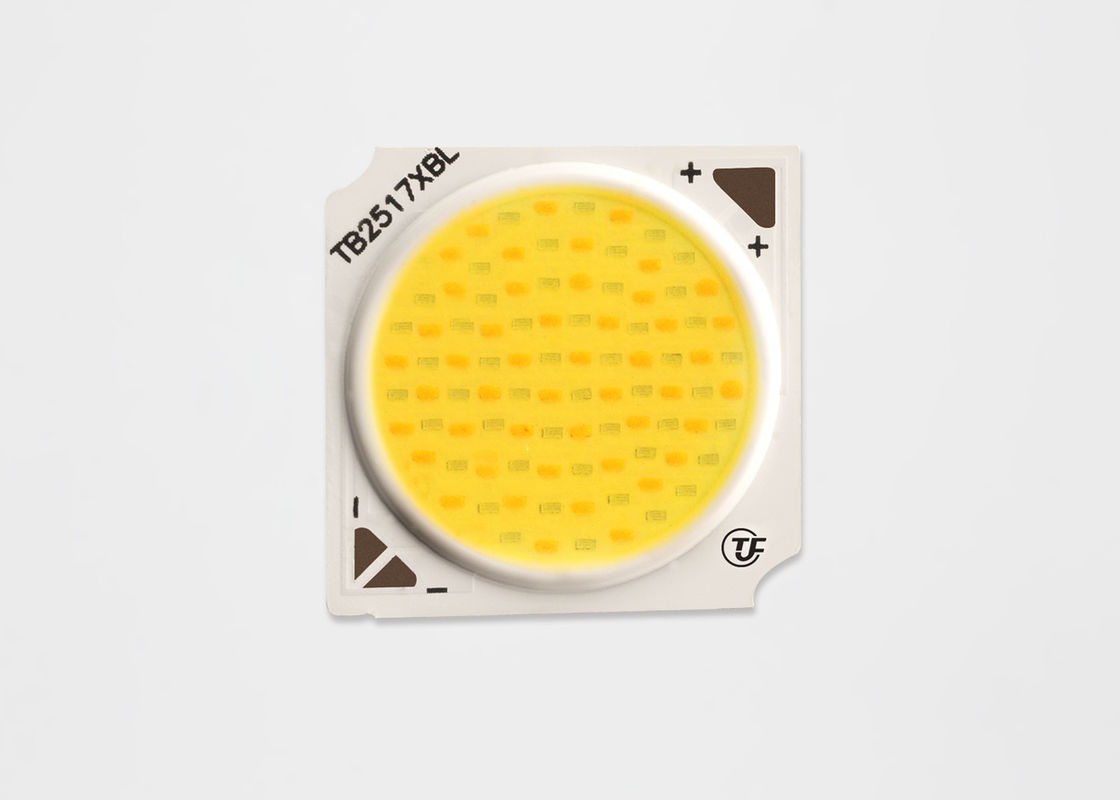

20W 30W Flip chips alumnium no goldwire international brand



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 0

• Compact high flux density light source

• Uniform, high quality illumination

• Minimum 70, 80, and 90 CRI options

• StreaCLined thermal path

• ENERGY STAR® / ANSI compliant color binning

  structure with 2, 3 and 5 SDCM standard





Chip LED Cob Product advantages:

1. Good thermal performance and wide hot channel.

2. The spot is uniform.

3. Energy saving and environmental protection, high light efficiency.

4. High brightness, low light decay, polished.

5. Easy to use and easy to install.

6. Strong antistatic ability.





Application Of COB LED

1,mining lamp

2,floodlight

3,project light lamp

4,tunnel light

5,LED downlight

20W 30W Flip Chip Cob Led No Elector Magnetism Interference 1



Part Number Typical Power (W) Nominal CCT (K) Minimum Pulsed Flux (lm) Typical Pulsed Flux (lm) Typical Voltage (V) Nominal Current (mA) Typical Efficacy (lm/W)
ML13070302P530E*7 3.1 3000 K 377 419 9.6 320 135
ML13070302P535E*7 3.1 3500 K 382 425 9.6 320 137
ML13070302P540E*7 3.1 4000 K 385 428 9.6 320 138
ML13070302P550E*7 3.1 5000 K 388 431 9.6 320 139
ML13070302P557E*7 3.1 5700 K 391 434 9.6 320 140
ML13070302P565E*7 3.1 6500 K 388 431 9.6 320 139
ML13070302P522E*8 3.1 2200 K 304 338 9.6 320 109
ML13070302P527E*8 3.1 2700 K 326 363 9.6 320 117
ML13070302P530E*8 3.1 3000 K 338 375 9.6 320 121
ML13070302P535E*8 3.1 3500 K 346 384 9.6 320 124
ML13070302P540E*8 3.1 4000 K 352 391 9.6 320 126
ML13070302P550E*8 3.1 5000 K 357 397 9.6 320 128
ML13070302P557E*8 3.1 5700 K 363 403 9.6 320 130
ML13070302P565E*8 3.1 6500 K 357 397 9.6 320 128
ML13070302P522E*9 3.1 2200 K 262 291 9.6 320 94
ML13070302P527E*9 3.1 2700 K 285 316 9.6 320 102
ML13070302P530E*9 3.1 3000 K 296 329 9.6 320 106
ML13070302P535E*9 3.1 3500 K 304 338 9.6 320 109
ML13070302P540E*9 3.1 4000 K 310 344 9.6 320 111
ML13070302P550E*9 3.1 5000 K 315 350 9.6 320 113
ML13070302P557E*9 3.1 5700 K 321 357 9.6 320 115





20W 30W Flip Chip Cob Led No Elector Magnetism Interference 2



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 3



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 4

5.1 Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 5

CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1



































































20W 30W Flip Chip Cob Led No Elector Magnetism Interference 6


6.1 Table 39: Maximum Ratings


20W 30W Flip Chip Cob Led No Elector Magnetism Interference 7

Notes for Table 39:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 8



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 9



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 10



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 11



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 12



Product Packing and Labeling



20W 30W Flip Chip Cob Led No Elector Magnetism Interference 13
