10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install

Basic Information
Place of Origin: Shenzhen
Brand Name: TYF
Certification: CE,RoHs
Model Number: FC Series
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 4pcs/tray, 2000PCS/CTN
Delivery Time: 3-5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,00,000 PCS/day
Detail Information
Emitting Color: Warm White,Natural White,Cool White Chip Material: Bridgelux
Type: COB LED Application: COB LED Grow Lamp
Product Name: Flexible Cob Chip Warranty: 3 Years
Highlight:

flip chip led

,

bridgelux led chip


Product Description

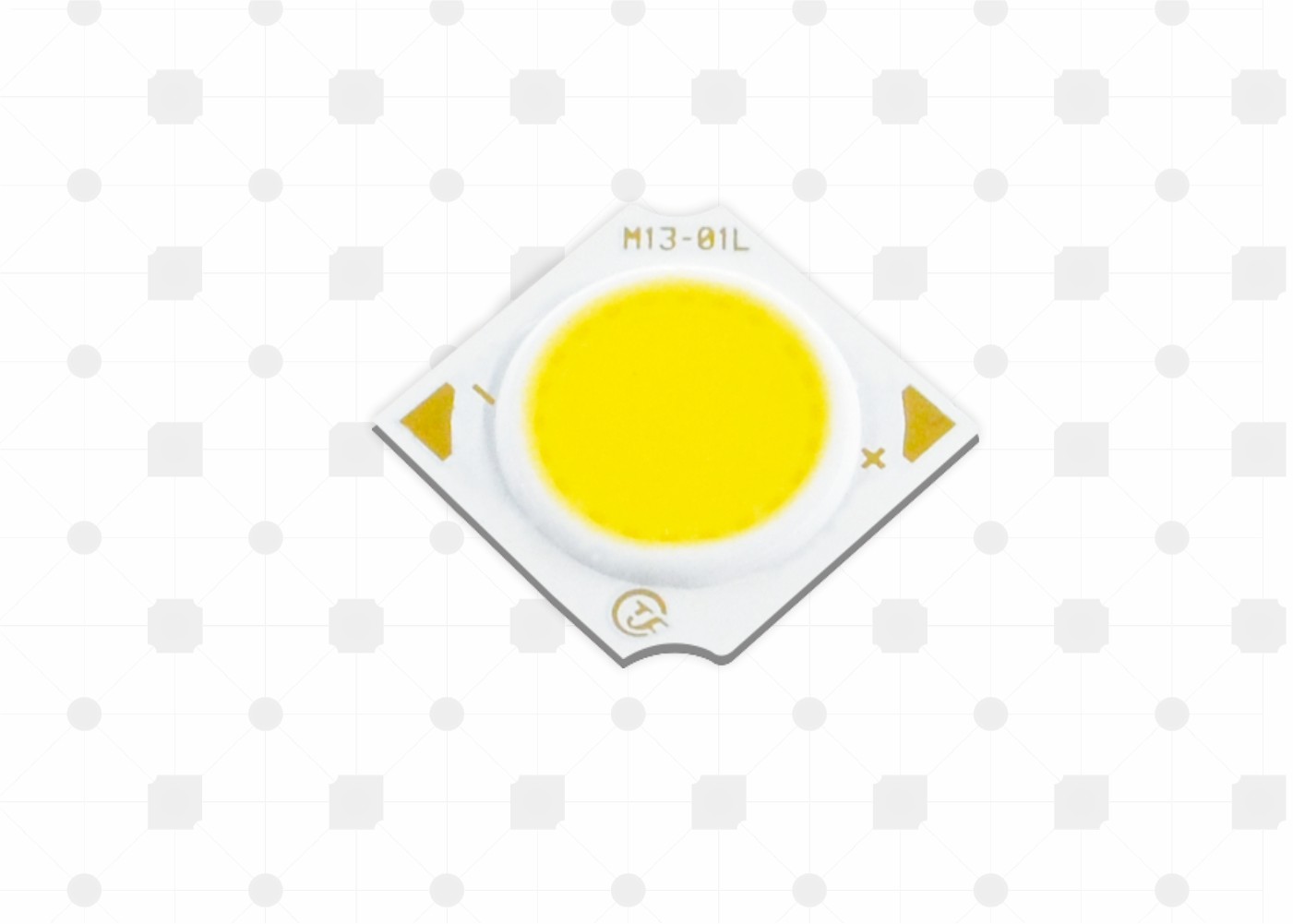

10W-1500W DC Flip Chip Cob LED, 3 Years Warranty, Ce Rohs



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 0

• Efficacy of >130 lm/W typical for 6000K, 70CRI(PB)

• Efficacy of 140 lm/W typical for 6000K, 70CRI(P6)

• Copper base, thermal conductivity is 122-176W/(m·K) • Emitting diameter against 80kg pressure
• Minimum 70, 80 CRI options
• ENERGY STAR® / ANSI compliant color binning structure with 3 and 5 SDCM standard
• More energy efficient than incandescent, halogen and fluorescent lamps
• Product series and company logo on the front • RoHS compliant



2 Advantages
• High stability for outdoor application
• Significantly reduced thermal resistance and increased operating temperature
• Uniform, consistent white light

• Lower operating cost • Easy to use with daylight and motion detectors to enable increased energy saving
• Reduced maintenance cost • Environmentally friendly, no disposal issue



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 1



The part number designation for TYF Outdoor (OD) Series LED arrays is explained as follows:

10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 2



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 3



Part Number Typical Power (W) Nominal CCT (K) Minimum Pulsed Flux (lm) Typical Pulsed Flux (lm) Typical Voltage (V) Nominal Current (mA) Typical Efficacy (lm/W)
ML13070302P530E*7 3.1 3000 K 377 419 9.6 320 135
ML13070302P535E*7 3.1 3500 K 382 425 9.6 320 137
ML13070302P540E*7 3.1 4000 K 385 428 9.6 320 138
ML13070302P550E*7 3.1 5000 K 388 431 9.6 320 139
ML13070302P557E*7 3.1 5700 K 391 434 9.6 320 140
ML13070302P565E*7 3.1 6500 K 388 431 9.6 320 139
ML13070302P522E*8 3.1 2200 K 304 338 9.6 320 109
ML13070302P527E*8 3.1 2700 K 326 363 9.6 320 117
ML13070302P530E*8 3.1 3000 K 338 375 9.6 320 121
ML13070302P535E*8 3.1 3500 K 346 384 9.6 320 124
ML13070302P540E*8 3.1 4000 K 352 391 9.6 320 126
ML13070302P550E*8 3.1 5000 K 357 397 9.6 320 128
ML13070302P557E*8 3.1 5700 K 363 403 9.6 320 130
ML13070302P565E*8 3.1 6500 K 357 397 9.6 320 128
ML13070302P522E*9 3.1 2200 K 262 291 9.6 320 94
ML13070302P527E*9 3.1 2700 K 285 316 9.6 320 102
ML13070302P530E*9 3.1 3000 K 296 329 9.6 320 106
ML13070302P535E*9 3.1 3500 K 304 338 9.6 320 109
ML13070302P540E*9 3.1 4000 K 310 344 9.6 320 111
ML13070302P550E*9 3.1 5000 K 315 350 9.6 320 113
ML13070302P557E*9 3.1 5700 K 321 357 9.6 320 115





10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 4



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 5



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 6

5.1 Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 7

CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1







































































10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 8


6.1 Table 39: Maximum Ratings


10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 9

Notes for Table 12:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.

10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 10



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 11



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 12



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 13



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 14



Product Packing and Labeling



10W-1500W DC Flip Chip Cob Led 3 Years Warranty Simple Structure And Easy To Install 15
