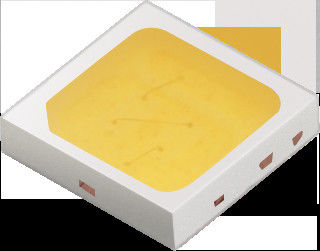

High Efficiency SMD LED Chip 126v 14W RA90 140lm/w for Street Light

Basic Information
Place of Origin: China
Brand Name: TYF
Certification: LM 80-9000 hours
Model Number: S-1A-14-1402-FB
Minimum Order Quantity: 50K
Price: Negotiable
Packaging Details: Vacuum packaging,4000 pcs/reel
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: >1000,000,000 pcs/week
Detail Information
Leds: 1A1A Package Material: EMC
Beam Angle: 120° Dimension: 10.0mm×10.0mm×0.8mm
CRI: 70 Color Temperature: 2600-8000K
Wattage: 14W Limiting Power: 14W
Voltage Range: 126V Luminous Efficiency: 130-140lm/w
JunctionTemperature: 120ºC OperatingTemperature: -40ºC To +105ºC
ESD Sensitivity: 2,000VHBM Certificate: ROHS LM80
High Light:

126v SMD LED Chip

,

14W SMD LED Chip

,

14W high lumen led chip


Product Description

High Efficiency SMD LED Chip 126v 14W RA90 140lm/W For Street Light



130-140LM/W high efficiency led chip 10.0mm×10.0mm smd led chip 126v 14W RA90 1A1A Street light



Details:

Item name: 14W SMD EMC 1A1A

Part Number:S-1A-14-1402-FB

Voltage: 126V

Place of Origin: ShenZhen, China

MOQ: 5000 pcs



The TYF1A1A package with higher efficiency and CRI, low power consumption,wide beam angle.

It perfectly solves the requirements for high efficiency and long lifetime









Application

Track Light  .Spot Light . Street Light .  High Bay . UFO Light. Flood Light,panel light


Electrical-optical Characteristics

Part Number Voltage(V) Power(W) CCT(K) CRI Efficacy@120mA
S-1A-14-1402-FB      124-128 14 2700 ≥90 120-130
3000 ≥90 120-130
4000 ≥90 130-140
5000 ≥90 130-140
6000 ≥90 125-135
6250 ≥90 125-135
6500 ≥90 120-130



Forward voltage Group Min Forward voltage(v)@150MA Max Forward voltage(v)@150MA
124E 124 125
125E 125 126
126E 126 127
127E 127 128





Reliability Test Items And Conditions

Serial No. Test Item Reference standard Test condition Sample Quantity(pcs) Failure Quantity(pcs)
1 High and low temperature shock JESD22-A104E (-40℃15min)-------+120℃(15min),↑↓10mins,200cycles 22 0
2 High Temperature Storage JESD22-A103D +100℃,1000h 22 0
3 Low Temperature Storage JESD22-A119 -40℃,1000h 22 0
4 High Temperature,High Humidity,Aging test JESD22-A101C IF=150MA T=+85℃,RH=85%1000h 22 0
5 High-temperature operation IESLM80-2015 IF=150MA  T=+105℃,1000h 22 0
6 Low temperature operation JESD22-A108D IF=150MA  T=-40℃,1000h 22 0
7 Moisture/Reflow SensitivityTest J-STD-020E Precondition:60℃.60%RH.168H  Tsld=260℃.10sec. 3Reflows 22 0





High Efficiency SMD LED Chip 126v 14W RA90 140lm/w for Street Light 0



High Efficiency SMD LED Chip 126v 14W RA90 140lm/w for Street Light 1High Efficiency SMD LED Chip 126v 14W RA90 140lm/w for Street Light 2





Taping Specifications:

High Efficiency SMD LED Chip 126v 14W RA90 140lm/w for Street Light 3





Key Specifications/Special Features:

1. LM 80-9000 hours passed,long lifespan,more than 54000 hours

2. Good color consistency, High CRI,High LM

3. 99.99% goldwire from Heraeus inside ,better perfermance

4. Customer design is welcomed





Primary Competitive Advantages:

Strong R&D Forces

  • One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
  • World standard CNAS Accredited Laboratory.
  • Launch highly-competitive new products seasonally.
  • Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.

Extensive Application Experience & Quality Commitment

  • Strict control over raw materials selection.
  • 3 Years Warranty at least.
  • Reliable long life span; Good Quality Raw Material.
  • More than 13 years' experience in LED Field.
  • Supported many government lighting projects.

Outstanding Service Level

  • Professional Sales Team backing up with top experienced engineers in LED field.
  • Best Quality & Best Price & Best Service.
  • Professional customization and OEM service.

More Info. about TYF

  • Top 3 LED manufacturer
  • Obtained 200+ patents
  • 12000+ square meters
  • SGS, TUV, BV, ISO9001 audited factory
  • 400+ employees
  • 3 production line, SMD workshop, COB workshop, Led Module workshop
  • 100KK SMD LED per month
  • 3KK COB LED per month
  • 10KK other LEDs per month
  •
  •
