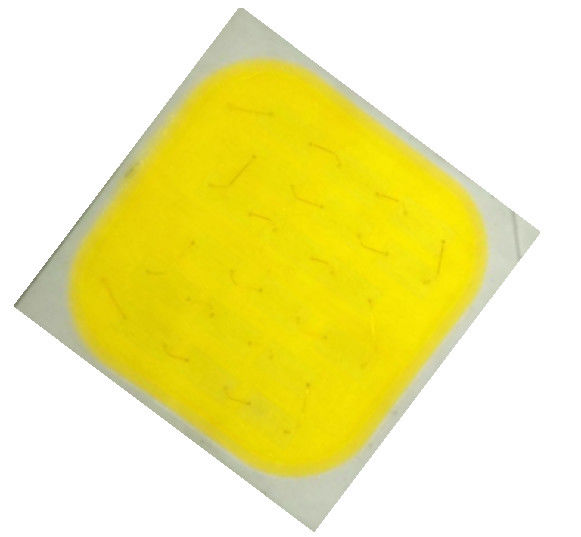

54v 7w High Efficiency 7070 SMD LED Chip 220lm/W 230lm/W For Downlight

Basic Information
Place of Origin: China
Brand Name: TYF
Certification: LM 80-9000 hours
Model Number: S-E7-90-RA-F2-H
Minimum Order Quantity: 50K
Price: Negotiable
Packaging Details: Vacuum packaging,4000 pcs/reel
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: >1000,000,000 pcs/week
Detail Information
Leds: 7070 Dimension: 7.0mm×7.0mm×0.7mm
CRI: 70 Color Temperature: 2600-8000K
Wattage: 6W Limiting Power: 9W
Voltage Range: 54V Luminous Efficiency: 220-230lm/w
JunctionTemperature: 120ºC OperatingTemperature: -40ºC To +105ºC
ESD Sensitivity: 2,000VHBM Certificate: ROHS LM80
High Light:

7w 7070 SMD LED Chip

,

7070 SMD LED Chip

,

7070 high lumen led chip


Product Description

54v 7w High Efficiency 7070 SMD LED Chip 220lm/W 230lm/W For Downlight



7070 smd led chip 54v 7w high efficiency 22lm/w 230lm/w 7.0*7.0mm for downlight



Details:

Item name: 6W SMD 7070

Product type: EMC7070

Part Number:S-E7-90-RA-F2-H

Voltage: 54V

MOQ: 5000 pcs



The TYF7070 package with higher efficiency and CRI, low power consumption,wide beam angle.

It perfectly solves the requirements for high efficiency and long lifetime









Application

Track Light  .Spot Light . Street Light .  High Bay . UFO Light. Flood Light


Electrical-optical Characteristics

Part Number Voltage(V) Power(W) CCT(K) CRI Efficacy@20mA
S-E7-90-RA-F2-H     53-55    6W( Max 9W) 2700 70 210-220
3000 70 210-220
4000 70 220-230
5000 70 220-230
6000 70 215-225
6250 70 215-225
6500 70 210-220
2700 80 200-210
3000 80 200-210
4000 80 210-220
5000 80 210-220
6000 80 205-215
6250 80 205-215
6500 80 200-210
2700 90 185-195
3000 90 185-195
4000 90 190-195
5000 90 190-195
6000 90 185-195
6250 90 185-195
6500 90 180-190







Forward voltage Group Min Forward voltage(v)@150MA Max Forward voltage(v)@150MA
520E 52 53
530E 53 54
540E 54 55





Reliability Test Items And Conditions

Serial No. Test Item Reference standard Test condition Sample Quantity(pcs) Failure Quantity(pcs)
1 High and low temperature shock JESD22-A104E (-40℃15min)-------+120℃(15min),↑↓10mins,200cycles 22 0
2 High Temperature Storage JESD22-A103D +100℃,1000h 22 0
3 Low Temperature Storage JESD22-A119 -40℃,1000h 22 0
4 High Temperature,High Humidity,Aging test JESD22-A101C IF=150MA T=+85℃,RH=85%1000h 22 0
5 High-temperature operation IESLM80-2015 IF=150MA  T=+105℃,1000h 22 0
6 Low temperature operation JESD22-A108D IF=150MA  T=-40℃,1000h 22 0
7 Moisture/Reflow SensitivityTest J-STD-020E Precondition:60℃.60%RH.168H  Tsld=260℃.10sec. 3Reflows 22 0





54v 7w High Efficiency 7070 SMD LED Chip 220lm/W 230lm/W For Downlight 0



54v 7w High Efficiency 7070 SMD LED Chip 220lm/W 230lm/W For Downlight 1

54v 7w High Efficiency 7070 SMD LED Chip 220lm/W 230lm/W For Downlight 2



Taping Specifications:



54v 7w High Efficiency 7070 SMD LED Chip 220lm/W 230lm/W For Downlight 3



Key Specifications/Special Features:

1. LM 80-9000 hours passed,long lifespan,more than 54000 hours

2. Good color consistency, High CRI,High LM

3. 99.99% goldwire from Heraeus inside ,better perfermance

4. Customer design is welcomed





Primary Competitive Advantages:

Strong R&D Forces

  • One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
  • World standard CNAS Accredited Laboratory.
  • Launch highly-competitive new products seasonally.
  • Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.

Extensive Application Experience & Quality Commitment

  • Strict control over raw materials selection.
  • 3 Years Warranty at least.
  • Reliable long life span; Good Quality Raw Material.
  • More than 13 years' experience in LED Field.
  • Supported many government lighting projects.

Outstanding Service Level

  • Professional Sales Team backing up with top experienced engineers in LED field.
  • Best Quality & Best Price & Best Service.
  • Professional customization and OEM service.

More Info. about TYF

  • Top 3 LED manufacturer
  • Obtained 200+ patents
  • 12000+ square meters
  • SGS, TUV, BV, ISO9001 audited factory
  • 400+ employees
  • 3 production line, SMD workshop, COB workshop, Led Module workshop
  • 100KK SMD LED per month
  • 3KK COB LED per month
  • 10KK other LEDs per month
