| Leds: | 5050 | Package Material: | PCT |
|---|---|---|---|
| Beam Angle: | 120° | Dimension: | 5.0mm×5.4mm×1.0mm |
| CRI: | 70 | Color Temperature: | 2600-8000K |
| Wattage: | 1W | Limiting Power: | 2W |
| Voltage Range: | 3V | Luminous Efficiency: | 155-190lm/w |
| JunctionTemperature: | 120ºC | OperatingTemperature: | -40ºC To +105ºC |
| ESD Sensitivity: | 2,000VHBM | Certificate: | ROHS LM80 |
| Highlight: | SMD LED Chip 5.0×5.4mm,SMD LED Chip For Spot Light,190lm/W SMD LED Chip |
||

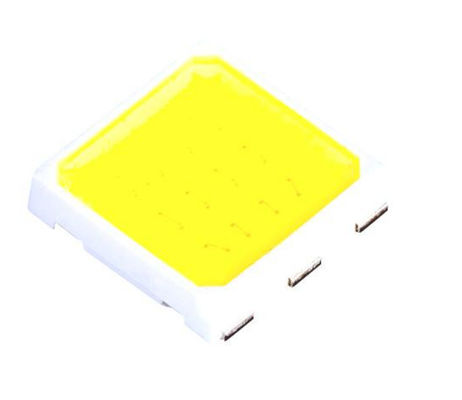

PCT5050 SMD LED Chip 5.0×5.4mm 155lm/W 190lm/W 3V 5050 for Spot Light
Details:
Item name: 1W SMD 5050
Product type: PCT5050
Part Number:S-F5-20-14-FR-H
Voltage: 3V
Place of Origin: ShenZhen, China
MOQ: 5000 pcs
The TYF5050 package with higher efficiency and CRI, low power consumption,wide beam angle.
It perfectly solves the requirements for high efficiency and long lifetime
Application
Track Light .Spot Light . Street Light . High Bay . UFO Light. Flood Light
Electrical-optical Characteristics
| Part Number | Voltage(V) | Power(W) | CCT(K) | CRI | Efficacy@300mA |
| S-F5-20-14-FR-H |
2.8-3.0 3.0-3.2 |
≤2 | 2700 | 70 | 170-180 |
| 3000 | 70 | 170-180 | |||
| 4000 | 70 | 180-190 | |||
| 5000 | 70 | 180-190 | |||
| 6000 | 70 | 175-185 | |||
| 6250 | 70 | 175-185 | |||
| 6500 | 70 | 170-180 | |||
| 2700 | 80 | 155-165 | |||
| 3000 | 80 | 155-165 | |||
| 4000 | 80 | 165-175 | |||
| 5000 | 80 | 165-175 | |||
| 6000 | 80 | 160-170 | |||
| 6250 | 80 | 160-170 | |||
| 6500 | 80 | 155-165 |
| Forward voltage Group | Min Forward voltage(v)@600MA | Max Forward voltage(v)@600MA |
| 28E | 2.8 | 3.0 |
| 30E | 3.0 | 3.2 |
| 32E | 3.2 | 3.4 |
Reliability Test Items And Conditions
| Serial No. | Test Item | Reference standard | Test condition | Sample Quantity(pcs) | Failure Quantity(pcs) |
| 1 | High and low temperature shock | JESD22-A104E | (-40℃15min)-------+120℃(15min),↑↓10mins,200cycles | 22 | 0 |
| 2 | High Temperature Storage | JESD22-A103D | +100℃,1000h | 22 | 0 |
| 3 | Low Temperature Storage | JESD22-A119 | -40℃,1000h | 22 | 0 |
| 4 | High Temperature,High Humidity,Aging test | JESD22-A101C | IF=600MA T=+85℃,RH=85%1000h | 22 | 0 |
| 5 | High-temperature operation | IESLM80-2015 | IF=600MA T=+105℃,1000h | 22 | 0 |
| 6 | Low temperature operation | JESD22-A108D | IF=600MA T=-40℃,1000h | 22 | 0 |
| 7 | Moisture/Reflow SensitivityTest | J-STD-020E | Precondition:60℃.60%RH.168H Tsld=260℃.10sec. 3Reflows | 22 | 0 |
Packing:
Key Specifications/Special Features:
1. LM 80-9000 hours passed,long lifespan,more than 54000 hours
2. Good color consistency, High CRI,High LM
3. 99.99% goldwire from Heraeus inside ,better perfermance
4. Customer design is welcomed
