| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TYF |
| Certification: | CE CB |
| Model Number: | D47B4L5023R0 |
| Minimum Order Quantity: | 100 |
| Price: | 6USD/PIECE |
| Packaging Details: | BLISTER BOX |
| Delivery Time: | 20 Weekday |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Leds: | EMC3030 | Chip Brand: | Bridgelux |
|---|---|---|---|
| PCB Size: | 239*47*16 | Wattage: | 30W |
| Input Voltage: | 120/230V | Color Temperature: | 4000K |
| CRI: | 70 | Luminous Efficiency: | 160lm/w |
| Application: | Street Light | Certificate: | CE |
| Highlight: | 30W AC Street Light Module,Bridgelux AC Street Light Module,CRI80 Driverless Led Module |
||

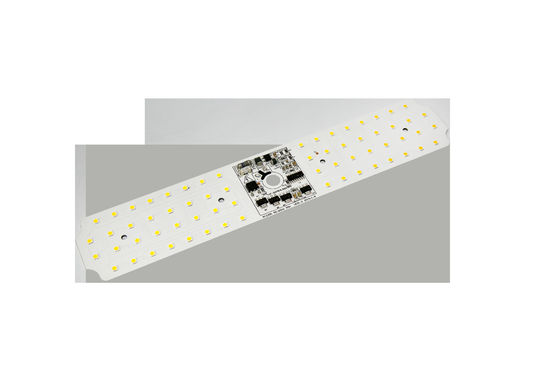

30W AC street light module 5000K CRI 80 120/230V with CE certificate
1.Product Introduction
TYF Opto. has introduced a variety of AC modules which are designed to be driven AC Line voltage. Compared with the traditional LED, TYF Opto. 's AC modules don't need to connect external AC Switch Power or driver. So that it can help to reduce the cost of circuit and the size of luminaries. And users have more flexibility when designing the luminaries. In addition to it make the luminaries manufacturing and assembling work more efficiency and simple.
The AC Switch Power or driver found in most general lighting luminaries can limit the overall life of the products. But with TYF Opto. 's AC modules the life of the general lighting luminaries more closely be estimated from the LED itself. And the module have a high power factor which can contribute to a higher energy savings in the end applications.
TYF Opto. will be a good partner or the best choice when designing your new creative luminaries with their high qualities AC modules which be designed and made carefully ,tested strictly .
1.1 Product Features
Connects Directly to AC Line Voltage
High Power Efficiency & Factor
Long Life Time
Simple BOM
Rosh Compliant
Line Voltage Regulation
Easy assembly
Lead Free Product
1.2 Product Applications
LED Street Light/ Tunnel Light
2. Electrical & Optical Characteristics(Ta=25℃) Table 2-1
| ITEM | SYMBOL | UNIT | TYPICAL Value |
| Input Voltage | Vin | V | 230 |
| Input Current | IF | mA | 228.6 |
| Operating Frequency | F | Hz | 50/60 |
| Input Power | P | W | 52.36 |
| Power Factor | PF | ％ | 0.995 |
| Total Harmonic Distortion | THD | ％ | 8.6 |
| Dimming Type | ■NA □ TRIAC □ PWM □ 0-10V □ DALI □ DMX □ Smart □ Other | ||
| Surge Capacity | Vs | KV | 2.5 |
| Electric Strength(AC) | Ve | KV | 1.5 |
| Operating/Case Temperature | Ta/Tc | ℃ | 25/85 |
| LED Parameters | 3030 | ||
| Luminous Flux | Φv | Lm | 6891.1 |
| Luminous Efficiency | ηv | Lm/w | 131.6 |
| Color Temperature | CCT | K | 5792 |
| Color Rendering Index | Ra/CRI | ％ | 80.2/71.9 |
| Light Distribution | - | - | |
| Viewing Angle | 2θ 1/2 | Deg. | - |
Note:
1) Operating Voltage doesn't indicate the maximum voltage which customers use but means tolerable voltage according to each country’s voltage variation rate. It is recommended that the solder pad temperature should be below 85℃.
2) Color bins are defined at transient operation.
3) The tolerance of measurement at our tester is Φv+/-10% and Ra+/-2.
4) Tolerance of ±5% on Power dissipation.
5) Φv is the total luminous flux output measured with an integrated sphere.
6) Surge Capacity in accordance with IEC61000-4-5.
2.1 Other Parameters(Ta=25℃) Table 2-3
| ITEM | Description |
| PCB Material | Aluminum Substrate |
| PCB dimensions | 239mm×47mm×1.6mm |
| Certification | ■ NA □ CCC □ CE □ UL □ FCC □ENERGY STAR □ Other |
| MBTF/Life Time @ Tc=85℃ | >30000 Hours |
2.2 Absolute Maximum Ratings(Ta=25℃) Table 2-4
| ITEM | SYMBOL | UNIT | Value |
| Power Dissipation | Pd | W | 52.5 |
| AC Current(RMS) | IF | mA | 240.5 |
| AC Voltage(RMS) | Vin | V | 200~240 |
| LED Junction Temperature | Tj-LED | ℃ | 110 |
| IC Junction Temperature | Tj-IC | ℃ | 150 |
| Top of the IC temperature IC | Tp | ℃ | 100 |
| LED Thermal Resistance (Junction / Soldering point) | Rthj-s | ℃/W | 20 |
| IC Thermal Resistance (Junction / Soldering point) | Rthj-s | ℃/W | 40 |
| Operating Temperature | To | ℃ | -20~+85 |
| Storage Temperature | Ts | ℃ | -40~+100 |
| ESD Sensitivity(HBM) | Vesd | KV | ±2 |
| Soldering Temperature(Reflow) | Tsld | ℃ | - |
| Soldering Temperature(Hand) | Tsld | ℃ | 350 3S |
3. Dimensions
4.Part Number Identification
| DOB PART NUMBER | |||||||||||||||
| X1 | X2-X5 | X6 | X7-X8 | X9-X10 | X11-X12 | X13X14 | X15X16 | X17 | X18 | X19 | X20 X21X22 | ||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ | ⑾ | ⑿ | ⒀ | |||
| Product Code |
Client Code |
IC Code |
Power Code |
Voltage Code
|
Serial Num. |
LED Code |
CCT Code
|
SDCM | CRI Code | Luminance | Year | Month |
Serial Num. |
||
| Module Code | Case Code | Serial Num. | Serial Num. | ||||||||||||
5. Workshop
5.Packing and shipment
TYF Opto.LED modules products, packed in plastic Tray, according to different size, XX PCs each plastic Tray, as shown in the following. products without plastic box packed in bubble bags, in order to prevent the outside pressure, choose different bubble bag, according to the product size in each pack of XX products, packaged product will be stored in the form of carton and sealed, as shown in the following.
