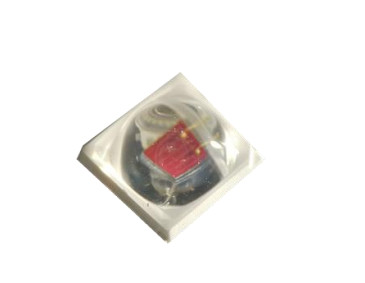

Led Grow Light 5050 5054 SMD LED Chip Deep Red 650nm 670nm For Meat Vetgetables

Basic Information
Place of Origin: China
Brand Name: TYF
Certification: LM 80-9000 hours
Model Number: MF51011L7DR
Minimum Order Quantity: 50K
Price: Negotiable
Packaging Details: Vacuum packaging,4000 pcs/reel
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: >1000,000,000 pcs/week
Detail Information
Leds: Horticultural Leds SMD5054 Package Material: White SMD Package, Colored Diffused Silicone Resin.
Beam Angle: 120° Dimension: 5.4mm X 5.0mm
CRI: ≥80 Color Temperature: 660 Nm (Deep Red)
Wattage: 0.2W Voltage Range: 2V
PPF: 2.5-2.8umol/s JunctionTemperature: 120ºC
OperatingTemperature: -40ºC To +105ºC ESD Sensitivity: 2,000VHBM
Certificate: ROHS LM80 Color Tolerance: 2, 3 And 5 SDCM Standard.
High Light:

5050 SMD LED Chip

,

5054 SMD LED Chip

,

5050 Led Chip


Product Description

Led grow Light 5050 5054 SMD LED Chip Deep Red 650nm 670nm For Fresh Meat Vetgetables



Details:

Item name: Rhythmic leds 5054

Part Number:MF51011L7DR

Voltage: 2V

Place of Origin: ShenZhen, China

MOQ: 5000 pcs


Higher performing 5054 family LED with well known superior robustness, high reliability, long lifetime, low
thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime
requirement. LEDs engineered to deliver the precise wavelengths of light needed to improve crop yield.
The 5054 Series is purpose-built to enable ease of system design for Horticulture applications. The 5054 Series
offers the only LEDs available today that are binned and tested based on Photosynthetic Photon Flux (PPF).





Application

Horticulture ,plant,vegetable,Fresh, fruits



Performance Characteristics

Part
Number
Color λ peak
(nm)
PAR
(m W)
PPF
(μ mol/s)
PPE
(μ mol/J)
BPF
(μ mol/s)
BPF/W
(μ mol/J)
Min Max Min Max Min Max Min Max Min Max Min Max
MF51011L7DR DR(WP650-670nm) 650 670 400 540 2.3 2.8 2.7 4 2.3 2.8 2.7 4



Notes for Tables

1. TYF maintains a tolerance of ±8% on μ mol/s for 5054 Horticulture.
2. PAR is the photosynthetic active radiation from 400 to 700nm.
3. PPF is the photosynthetic active radiation from 400 to 700nm.
4. Far Red typical PPFR and Par is measured from 700 to 800nm.
5. BPF is the photosynthetic active radiation from 380 to 800nm.



Optical Characteristics

Part Number Color TYPICAL SPECTRAL
HALF-WIDTH (nm)
TYPICAL TEMPERATURE
WAVELENGTH (nm/°C)
Typical Total
Included Angle
Typical
Viewing Angle
MF51011L7DR DR(WP650-670nm) 20 0.06 150 120



Notes for Table :
1. Total angle at which 90% of total luminous flux is captured.
2. Viewing angle is the off ax is angle from lamp centerline where the luminous intensity is ½ of the peak value.









Reliability Test Items And Conditions

Serial No. Test Item Reference standard Test condition Sample Quantity(pcs) Failure Quantity(pcs)
1 High and low temperature shock JESD22-A104E (-40℃15min)-------+120℃(15min),↑↓10mins,200cycles 22 0
2 High Temperature Storage JESD22-A103D +100℃,1000h 22 0
3 Low Temperature Storage JESD22-A119 -40℃,1000h 22 0
4 High Temperature,High Humidity,Aging test JESD22-A101C T=+85℃,RH=85% IF=500mA
1000h
22 0
5 High-temperature operation IESLM80-2015 T=+105℃,IF=500mA 6000h 22 0
6 Low temperature operation JESD22-A108D T=-40℃,IF=500mA 1000h 22 0
7 Moisture/Reflow SensitivityTest J-STD-020E Precondition: 60℃.60%RH.168H
Tsld=260℃. 10sec. 3 Reflows
22 0





Led Grow Light 5050 5054 SMD LED Chip Deep Red 650nm 670nm For Meat Vetgetables 0



Spectral Power Distribution Characteristics

Led Grow Light 5050 5054 SMD LED Chip Deep Red 650nm 670nm For Meat Vetgetables 1

Photon Output Characteristics

Led Grow Light 5050 5054 SMD LED Chip Deep Red 650nm 670nm For Meat Vetgetables 2





Taping Specifications:

Led Grow Light 5050 5054 SMD LED Chip Deep Red 650nm 670nm For Meat Vetgetables 3





Key Specifications/Special Features:

1. LM 80-9000 hours passed,long lifespan,more than 54000 hours

2. Good color consistency, High CRI,High LM

3. 99.99% goldwire from Heraeus inside ,better perfermance

4. Customer design is welcomed





Primary Competitive Advantages:

Strong R&D Forces

  • One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
  • World standard CNAS Accredited Laboratory.
  • Launch highly-competitive new products seasonally.
  • Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.

Extensive Application Experience & Quality Commitment

  • Strict control over raw materials selection.
  • 3 Years Warranty at least.
  • Reliable long life span; Good Quality Raw Material.
  • More than 13 years' experience in LED Field.
  • Supported many government lighting projects.

Outstanding Service Level

  • Professional Sales Team backing up with top experienced engineers in LED field.
  • Best Quality & Best Price & Best Service.
  • Professional customization and OEM service.

More Info. about TYF

  • Top 3 LED manufacturer
  • Obtained 200+ patents
  • 12000+ square meters
  • SGS, TUV, BV, ISO9001 audited factory
  • 400+ employees
  • 3 production line, SMD workshop, COB workshop, Led Module workshop
  • 100KK SMD LED per month
  • 3KK COB LED per month
  • 10KK other LEDs per month
