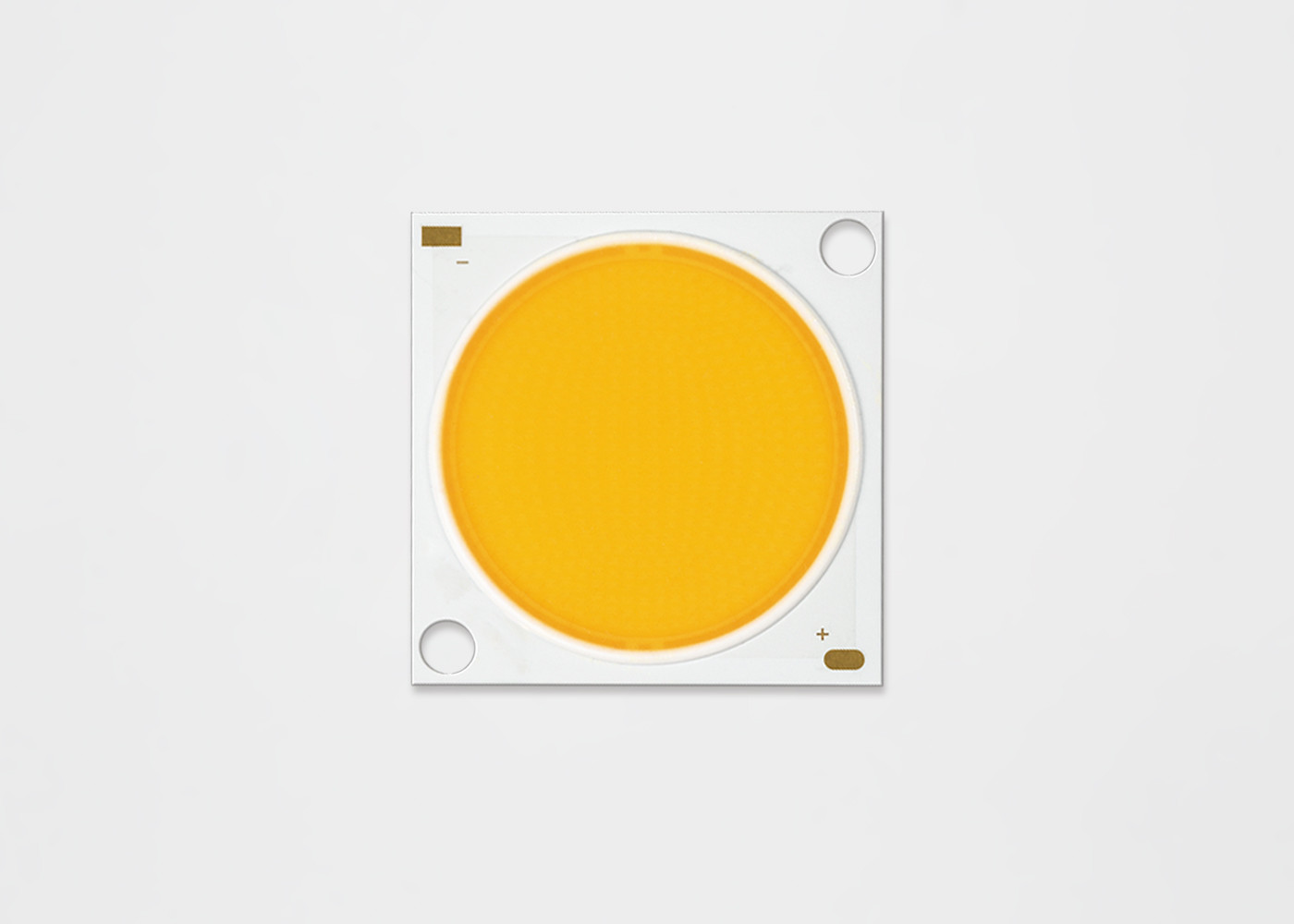

CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty

Basic Information
Place of Origin: Shenzhen
Brand Name: TYF
Certification: CE,RoHs,LM80
Model Number: M54-01l
Minimum Order Quantity: Negotiation
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000 PCS/day
Detail Information
Power: 80w Emitting Color: Warm White,Natural White,Cool White,Blue,Pink
Chip Material: InGaN,Bridgelux,Epileds Type: COB LED
Color Temperature: 6000-6500K,3500K,2800-7000k,Full Spectrum Color Rendering Index(ra): 80,90,95
Viewing Angle(°): 140 Voltage: 32-36V
Application: Track Light, Down Light, Street Light Product Name: COB LED
Warranty: 5 Years Lifespan: 50000hours
Highlight:

cob led chip

,

high power led chip


Product Description

CL541818P4 bridlgeux 80w super high lumen 160lm/w Chips LED COB LM80 5 years warranty



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 0

• Efficacy of 160 lm/W typical for 3000K, 80CRI

• Compact high flux density light source

• Uniform, high quality illumination

• Minimum 70, 80, and 90 CRI options

• StreaCLined thermal path

• ENERGY STAR® / ANSI compliant color binning

  structure with 2, 3 and 5 SDCM standard

• More energy efficient than incandescent, halogen

  and fluorescent lamps

• High voltage or Low voltage DC operation

• Product series and company logo on the front

• RoHS compliant



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 1



The part number designation for TYF ML Series LED arrays is explained as follows:



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 2

CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 3





Part Number

Typical Power (W) Nominal CCT (K)



CRI

Minimum Pulsed Flux (lm) Typical Pulsed Flux (lm) Typical Voltage (V) Nominal Current (mA) Typical Efficacy (lm/W)
CL54351818P430E*7 82.9 3000 K 70 12027 12932 51.2 1620 156
CL54351818P435E*7 82.9 3500 K 70 12181 13098 51.2 1620 158
CL54351818P440E*7 82.9 4000 K 70 12258 13181 51.2 1620 159
CL54351818P450E*7 82.9 5000 K 70 12413 13347 51.2 1620 161
CL54351818P457E*7 82.9 5700 K 70 12490 13430 51.2 1620 162
CL54351818P465E*7 82.9 6500 K 70 12413 13347 51.2 1620 161
CL54351818P422E*8 82.9 2200 K 80 10100 10860 51.2 1620 131
CL54351818P427E*8 82.9 2700 K 80 10948 11772 51.2 1620 142
CL54351818P430E*8 82.9 3000 K 80 11256 12103 51.2 1620 146
CL54351818P435E*8 82.9 3500 K 80 11410 12269 51.2 1620 148
CL54351818P440E*8 82.9 4000 K 80 11487 12352 51.2 1620 149
CL54351818P450E*8 82.9 5000 K 80 11642 12518 51.2 1620 151
CL54351818P457E*8 82.9 5700 K 80 11796 12684 51.2 1620 153
CL54351818P465E*8 82.9 6500 K 80 11642 12518 51.2 1620 151
CL54351818P422E*9 82.9 2200 K 90 8943 9616 51.2 1620 116
CL54351818P427E*9 82.9 2700 K 90 9791 10528 51.2 1620 127
CL54351818P430E*9 82.9 3000 K 90 10023 10777 51.2 1620 130
CL54351818P435E*9 82.9 3500 K 90 10177 10943 51.2 1620 132
CL54351818P440E*9 82.9 4000 K 90 10254 11026 51.2 1620 133
CL54351818P450E*9 82.9 5000 K 90 10408 11192 51.2 1620 135
CL54351818P457E*9 82.9 5700 K 90 10485 11275 51.2 1620 136



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 4



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 5



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 6

5.1 Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 7

CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1





















































CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 8


6.1 Table 39: Maximum Ratings


CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 9

Notes for Table 39:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 10



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 11



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 12



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 13

CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 14



Product Packing and Labeling



CL541818P4 Led Bridgelux Chip 80w Super High Lumen 160lm/W 32-36V 5 Years Warranty 15
