| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | TYF |
| Certification: | CE,RoHs,LM80 |
| Model Number: | M36-02L |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1,000,000 PCS/day |
| Power: | 55w | Emitting Color: | Warm White,Natural White,Cool White,Blue,Pink |
|---|---|---|---|
| Chip Material: | InGaN,Bridgelux,Epileds | Type: | COB LED |
| Color Temperature: | 6000-6500K,3500K,2800-7000k,Full Spectrum | Color Rendering Index(ra): | 80,90,95 |
| Viewing Angle(°): | 140 | Voltage: | 32-36V |
| Application: | Track Light, Down Light, Street Light | Product Name: | COB LED |
| Warranty: | 5 Years | Lifespan: | 50000hours |
| Highlight: | cob led chip,led light chips |
||

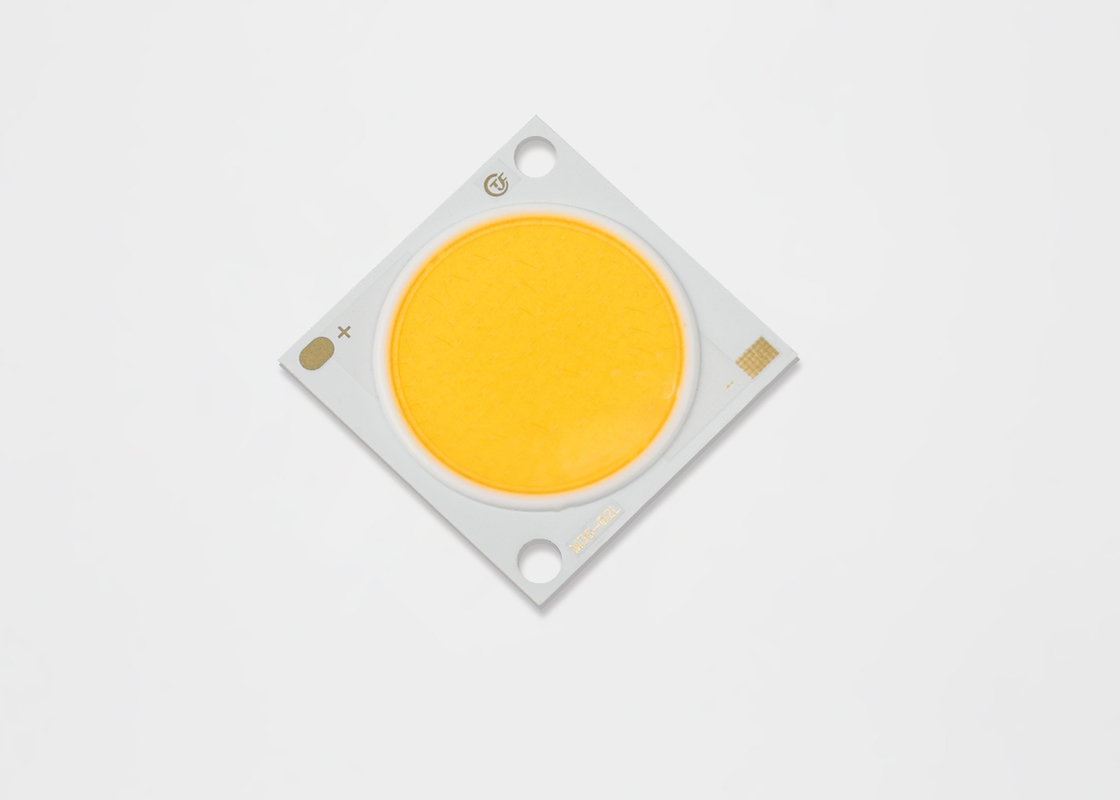

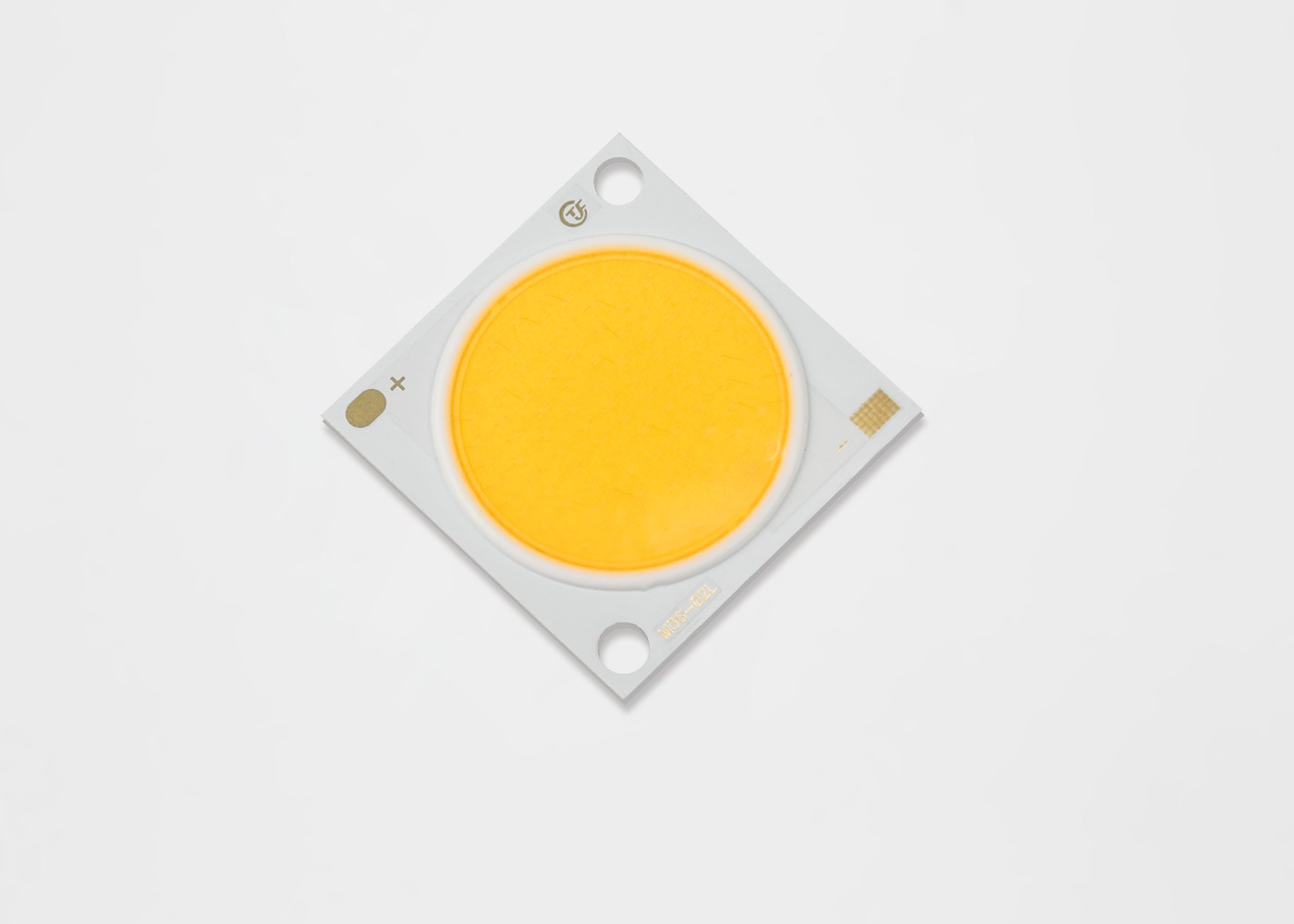

CL36241812P4 55W 160lm/w street light bridgleux cob lm80 LED Chips high lumen high reliability leds
• Efficacy of 160 lm/W typical for 3000K, 80CRI
• Compact high flux density light source
• Uniform, high quality illumination
• Minimum 70, 80, and 90 CRI options
• StreaCLined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 5 SDCM standard
• More energy efficient than incandescent, halogen
and fluorescent lamps
• High voltage or Low voltage DC operation
• Product series and company logo on the front
• RoHS compliant
The part number designation for TYF ML Series LED arrays is explained as follows:
|
Part Number |
Typical Power (W) | Nominal CCT (K) |
CRI |
Minimum Pulsed Flux (lm) | Typical Pulsed Flux (lm) | Typical Voltage (V) | Nominal Current (mA) | Typical Efficacy (lm/W) |
| CL36241812P430E*7 | 55.3 | 3000 K | 70 | 8229 | 8848 | 51.2 | 1080 | 160 |
| CL36241812P435E*7 | 55.3 | 3500 K | 70 | 8383 | 9014 | 51.2 | 1080 | 163 |
| CL36241812P440E*7 | 55.3 | 4000 K | 70 | 8486 | 9125 | 51.2 | 1080 | 165 |
| CL36241812P450E*7 | 55.3 | 5000 K | 70 | 8589 | 9235 | 51.2 | 1080 | 167 |
| CL36241812P457E*7 | 55.3 | 5700 K | 70 | 8692 | 9346 | 51.2 | 1080 | 169 |
| CL36241812P465E*7 | 55.3 | 6500 K | 70 | 8589 | 9235 | 51.2 | 1080 | 167 |
| CL36241812P422E*8 | 55.3 | 2200 K | 80 | 6840 | 7355 | 51.2 | 1080 | 133 |
| CL36241812P427E*8 | 55.3 | 2700 K | 80 | 7354 | 7908 | 51.2 | 1080 | 143 |
| CL36241812P430E*8 | 55.3 | 3000 K | 80 | 7714 | 8295 | 51.2 | 1080 | 150 |
| CL36241812P435E*8 | 55.3 | 3500 K | 80 | 7817 | 8406 | 51.2 | 1080 | 152 |
| CL36241812P440E*8 | 55.3 | 4000 K | 80 | 7920 | 8516 | 51.2 | 1080 | 154 |
| CL36241812P450E*8 | 55.3 | 5000 K | 80 | 8022 | 8625 | 51.2 | 1080 | 156 |
| CL36241812P457E*8 | 55.3 | 5700 K | 80 | 8074 | 8682 | 51.2 | 1080 | 157 |
| CL36241812P465E*8 | 55.3 | 6500 K | 80 | 8074 | 8682 | 51.2 | 1080 | 157 |
| CL36241812P422E*9 | 55.3 | 2200 K | 90 | 5863 | 6304 | 51.2 | 1080 | 114 |
| CL36241812P427E*9 | 55.3 | 2700 K | 90 | 6274 | 6747 | 51.2 | 1080 | 122 |
| CL36241812P430E*9 | 55.3 | 3000 K | 90 | 6583 | 7078 | 51.2 | 1080 | 128 |
| CL36241812P435E*9 | 55.3 | 3500 K | 90 | 6789 | 7300 | 51.2 | 1080 | 132 |
| CL36241812P440E*9 | 55.3 | 4000 K | 90 | 6840 | 7355 | 51.2 | 1080 | 133 |
| CL36241812P450E*9 | 55.3 | 5000 K | 90 | 6891 | 7410 | 51.2 | 1080 | 134 |
| CL36241812P457E*9 | 55.3 | 5700 K | 90 | 6942 | 7465 | 51.2 | 1080 | 135 |
4, Applications:
5.1 Color Binning Information
Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)
CIE1931-x
Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range
|
Nominal CCT |
Center Point | MAJOR AXIS (a , b) |
Ellipse
Rotation Angel,θ |
|||
| X | Y | 2-Step | 3-Step | 5-Step | ||
| 2200K | 0.5018 | 0.4153 | (0.0048 , 0.0027) | (0.0072, 0.0041) | (0.0120, 0.0067) | 39.9 |
| 2500K | 0.4806 | 0.4141 | (0.0050, 0.0027) | (0.0076, 0.0041) | (0.0126, 0.0068) | 53.1 |
| 2700K | 0.4575 | 0.4101 | (0.0053, 0.0027) | (0.0080, 0.0041) | (0.0133, 0.0068) | 54.1 |
| 3000K | 0.4338 | 0.4030 | (0.0057, 0.0028) | (0.0086, 0.0042) | (0.0142, 0.0069) | 53.7 |
| 3500K | 0.4073 | 0.3917 | (0.0062, 0.0028) | (0.0093, 0.0041) | (0.0155, 0.0069) | 54.0 |
| 4000K | 0.3818 | 0.3797 | (0.0063, 0.0027) | (0.0093, 0.0042) | (0.0157, 0.0068) | 53.4 |
| 5000K | 0.3447 | 0.3553 | (0.0054, 0.0024) | (0.0081, 0.0035) | (0.0135, 0.0059) | 59.8 |
| 5700K | 0.3290 | 0.3417 | (0.0048, 0.0021) | (0.0072, 0.0032) | (0.0119, 0.0052) | 58.8 |
| 6500K | 0.3123 | 0.3282 | (0.0044, 0.0018) | (0.0066, 0.0027) | (0.0110, 0.0045) | 58.1 |
6.1 Table 39: Maximum Ratings
Notes for Table 39:
Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode
8,CAUTION
RECOMMENDED SOLDERING CONDITION
For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a
temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied
to resin part while soldering is implemented. Next process of soldering should be carried out after the product has
return to ambient temperature. CAUTION: TEMPERATURE CONTROL
Product Packing and Labeling
