CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective

Basic Information
Place of Origin: Shenzhen
Brand Name: TYF
Certification: CE,RoHs,LM80
Model Number: ML1311
Minimum Order Quantity: Negotiation
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000 PCS/day
Detail Information
Power: 30w Emitting Color: Warm White,Natural White,Cool White
Chip Material: Bridgelux Type: COB LED
Application: COB LED Grow Lamp Product Name: COB LED
Highlight:

cob led chip

,

led light chips


Product Description

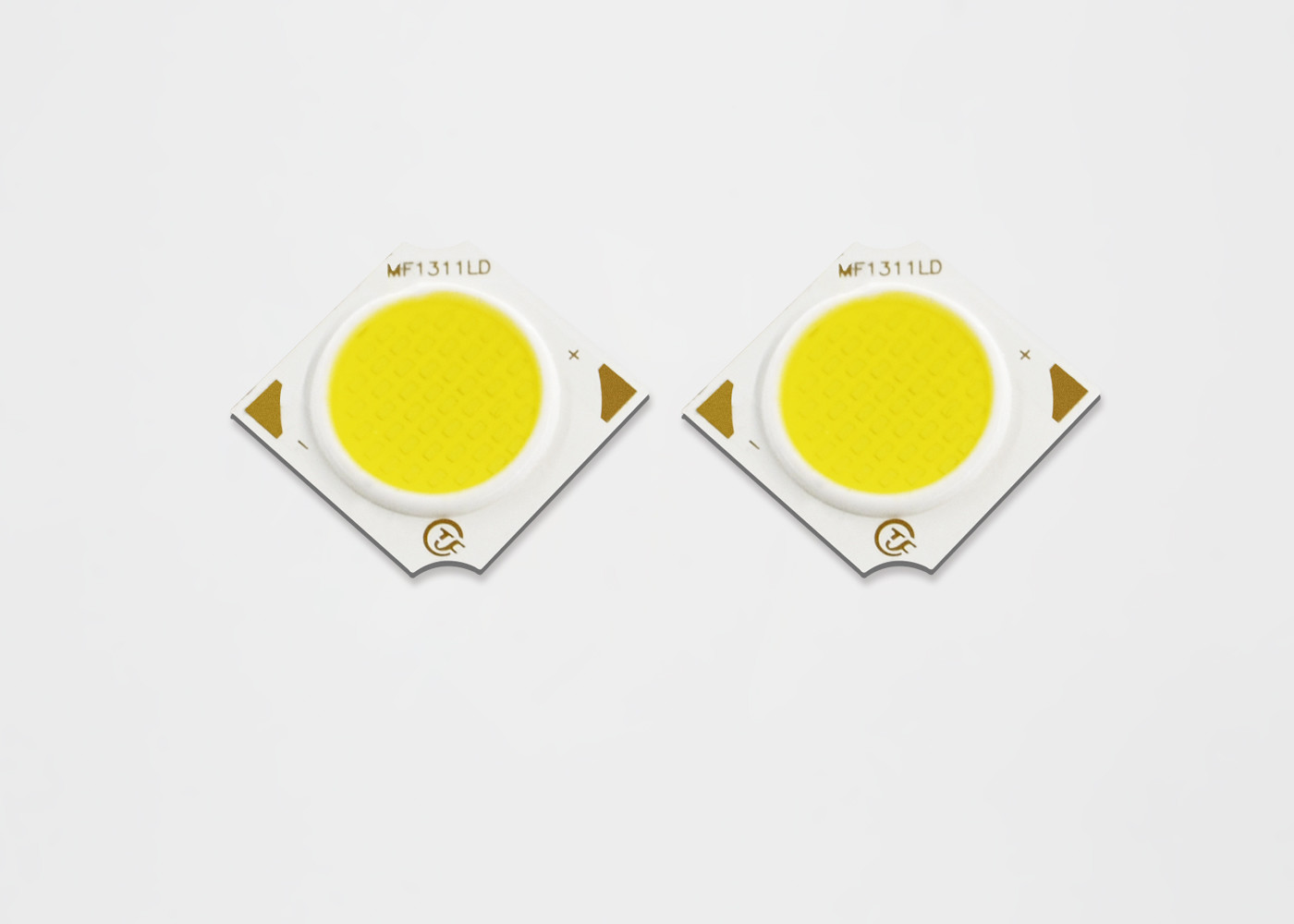

CL13111203P4 18W 160lm/w Down light Track light high lux efficacy RA90 Commercial Light Bridgelux led chips LM80



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 0

• Efficacy of 155 lm/W typical for 3000K, 80CRI

• Compact high flux density light source

• Uniform, high quality illumination

• Minimum 70, 80, and 90 CRI options

• StreaCLined thermal path

• ENERGY STAR® / ANSI compliant color binning

  structure with 2, 3 and 5 SDCM standard

• More energy efficient than incandescent, halogen

  and fluorescent lamps

• High voltage or Low voltage DC operation

• Product series and company logo on the front

• RoHS compliant



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 1



The part number designation for TYF ML Series LED arrays is explained as follows:



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 2

CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 3



Part Number Typical Power (W) Nominal CCT (K) Minimum Pulsed Flux (lm) Typical Pulsed Flux (lm) Typical Voltage (V) Nominal Current (mA) Typical Efficacy (lm/W)
ML13070302P530E*7 3.1 3000 K 377 419 9.6 320 135
ML13070302P535E*7 3.1 3500 K 382 425 9.6 320 137
ML13070302P540E*7 3.1 4000 K 385 428 9.6 320 138
ML13070302P550E*7 3.1 5000 K 388 431 9.6 320 139
ML13070302P557E*7 3.1 5700 K 391 434 9.6 320 140
ML13070302P565E*7 3.1 6500 K 388 431 9.6 320 139
ML13070302P522E*8 3.1 2200 K 304 338 9.6 320 109
ML13070302P527E*8 3.1 2700 K 326 363 9.6 320 117
ML13070302P530E*8 3.1 3000 K 338 375 9.6 320 121
ML13070302P535E*8 3.1 3500 K 346 384 9.6 320 124
ML13070302P540E*8 3.1 4000 K 352 391 9.6 320 126
ML13070302P550E*8 3.1 5000 K 357 397 9.6 320 128
ML13070302P557E*8 3.1 5700 K 363 403 9.6 320 130
ML13070302P565E*8 3.1 6500 K 357 397 9.6 320 128
ML13070302P522E*9 3.1 2200 K 262 291 9.6 320 94
ML13070302P527E*9 3.1 2700 K 285 316 9.6 320 102
ML13070302P530E*9 3.1 3000 K 296 329 9.6 320 106
ML13070302P535E*9 3.1 3500 K 304 338 9.6 320 109
ML13070302P540E*9 3.1 4000 K 310 344 9.6 320 111
ML13070302P550E*9 3.1 5000 K 315 350 9.6 320 113
ML13070302P557E*9 3.1 5700 K 321 357 9.6 320 115





CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 4



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 5



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 6

5.1 Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 7

CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1





















































6, Absolute Maximum Ratings


6.1 Table 39: Maximum Ratings


CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 8

Notes for Table 39:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 9



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 10



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 11



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 12



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 13



Product Packing and Labeling



CL13111203P4 18W 160lm/W Small Led Chip High Consistency High Cost Effective 14
