Detailed Product Description
Power: 10w 15w Chip Material: Bridgelux
Type: Cob Led Application: COB LED Grow Lamp
Product Name: COB LED Lifespan: 50000hours

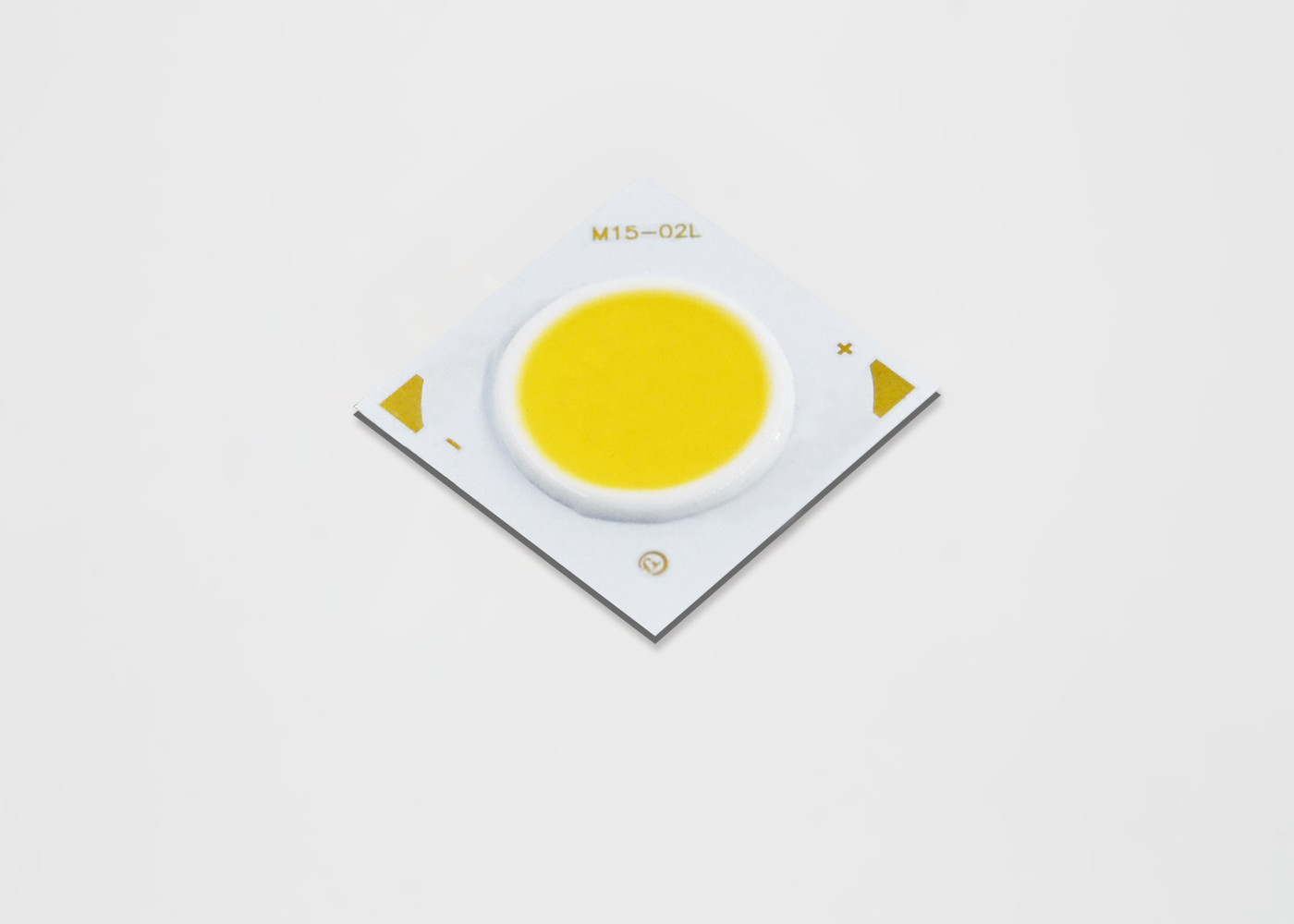

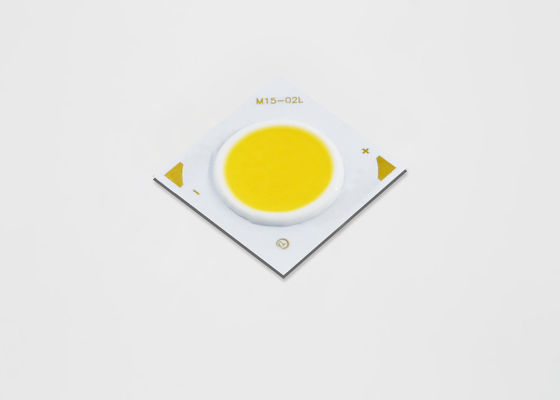

10w 15w Sport Light Par Light LM80 passed COB led



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



• Efficacy of 128 lm/W typical for 3000K, 80CRI

• Compact high flux density light source

• Uniform, high quality illumination

• Minimum 70, 80, and 90 CRI options

• StreaCLined thermal path

• ENERGY STAR® / ANSI compliant color binning structure with 2, 3 and 5 SDCM standard

• More energy efficient than incandescent, halogen and fluorescent lamps

• High voltage or Low voltage DC operation

• Product series and company logo on the front

• RoHS compliant



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



The part number designation for TYF ML Series LED arrays is explained as follows:



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



        Min. Typ. Max. LM/W
Parameter  Symbol Condition CRI Unit
  VF IF=320mA /Tc=25 ℃ / 18 19.2 20.4 / V
voltage
Luminous flux Φv CCT:5000-6500K RA:80 660 690 - >110 Lm(LM/W)
RA:70 - - - -
CCT:4000-4500K RA:80 660 690 - >110
RA:70 - - - -
CCT:2800-3200K RA:80 630 660 - >105
RA:70 - - - -





10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L





10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L

                                                                              CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1































































10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L


Table 39: Maximum Ratings


10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L

Notes for Table 39:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL



10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L10w 15w Sport Light Par Light High Power Led Chips LM80 Passed M15-02L
