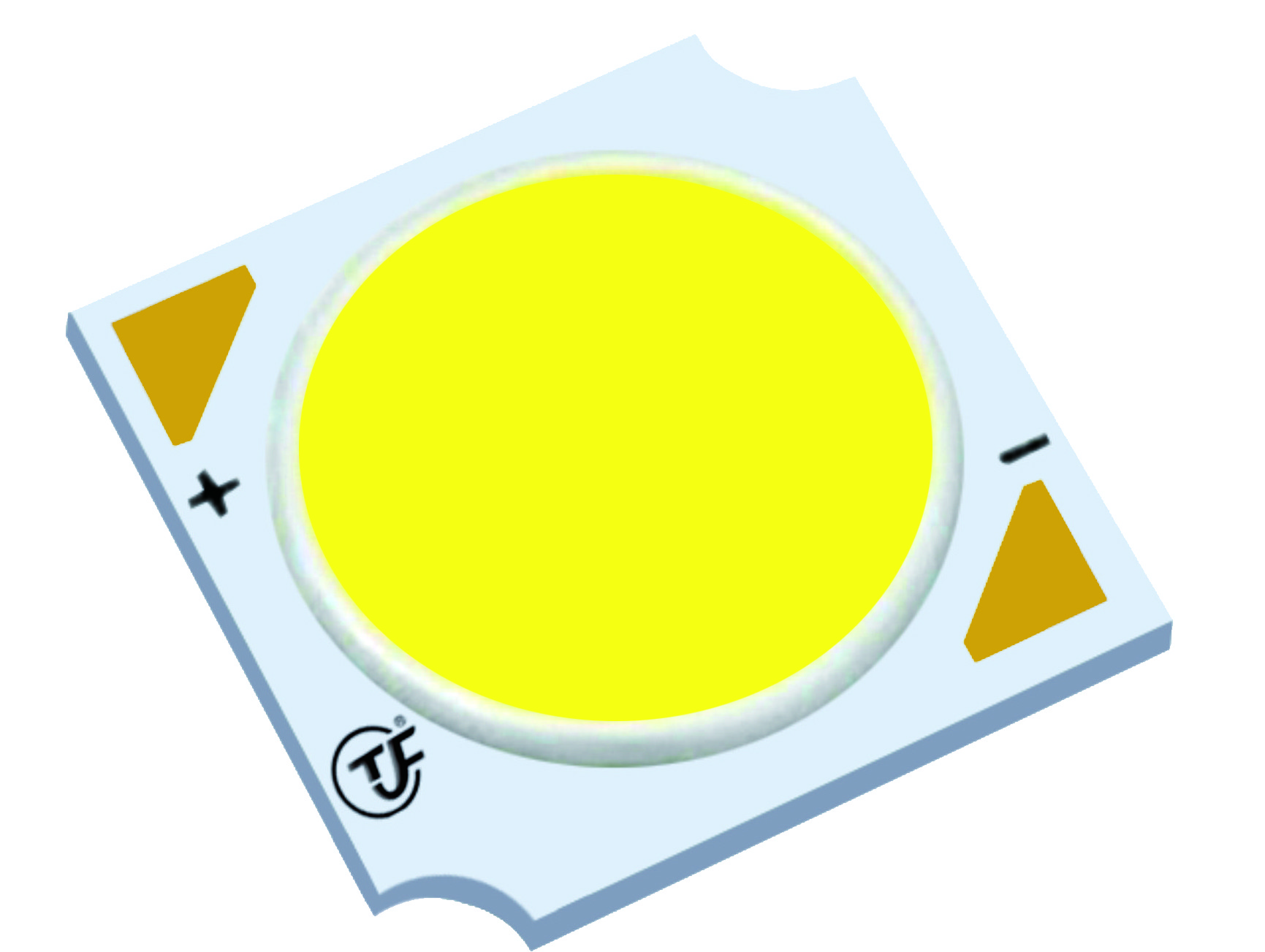

COB Bridgleux Super Bright 80W CL Series

Basic Information
Place of Origin: China
Brand Name: TYF
Certification: LM80
Model Number: CL54351818P4
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 25PCS/TRAY; 2000PCS/CTN; 2KG/CTN
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 100,000PCS/Day
Detail Information
Mirror Aluminum: Warm White-cool White Or Customization Option
Highlight:

high power led chip

,

led light chips


Product Description



COB Bridgleux Super Bright 80W CL Series 0

• Efficacy of >130 lm/W typical for 6000K, 70CRI(PB)

• Efficacy of 140 lm/W typical for 6000K, 70CRI(P6)

• Copper base, thermal conductivity is 122-176W/(m·K) • Emitting diameter against 80kg pressure
• Minimum 70, 80 CRI options
• ENERGY STAR® / ANSI compliant color binning
structure with 3 and 5 SDCM standard
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Product series and company logo on the front • RoHS compliant



2 Advantages
• High stability for outdoor application
• Significantly reduced thermal resistance and
increased operating temperature
• Uniform, consistent white light • Lower operating cost • Easy to use with daylight and motion detectors to
enable increased energy saving
• Reduced maintenance cost • Environmentally friendly, no disposal issue



COB Bridgleux Super Bright 80W CL Series 1



The part number designation for TYF Special Series LED arrays is explained as follows:

COB Bridgleux Super Bright 80W CL Series 2



COB Bridgleux Super Bright 80W CL Series 3





Part Number

Typical Power (W) Nominal CCT (K)



CRI

Minimum Pulsed Flux (lm) Typical Pulsed Flux (lm) Typical Voltage (V) Nominal Current (mA) Typical Efficacy (lm/W)
CL54351818P430E*7 82.9 3000 K 70 12027 12932 51.2 1620 156
CL54351818P435E*7 82.9 3500 K 70 12181 13098 51.2 1620 158
CL54351818P440E*7 82.9 4000 K 70 12258 13181 51.2 1620 159
CL54351818P450E*7 82.9 5000 K 70 12413 13347 51.2 1620 161
CL54351818P457E*7 82.9 5700 K 70 12490 13430 51.2 1620 162
CL54351818P465E*7 82.9 6500 K 70 12413 13347 51.2 1620 161
CL54351818P422E*8 82.9 2200 K 80 10100 10860 51.2 1620 131
CL54351818P427E*8 82.9 2700 K 80 10948 11772 51.2 1620 142
CL54351818P430E*8 82.9 3000 K 80 11256 12103 51.2 1620 146
CL54351818P435E*8 82.9 3500 K 80 11410 12269 51.2 1620 148
CL54351818P440E*8 82.9 4000 K 80 11487 12352 51.2 1620 149
CL54351818P450E*8 82.9 5000 K 80 11642 12518 51.2 1620 151
CL54351818P457E*8 82.9 5700 K 80 11796 12684 51.2 1620 153
CL54351818P465E*8 82.9 6500 K 80 11642 12518 51.2 1620 151
CL54351818P422E*9 82.9 2200 K 90 8943 9616 51.2 1620 116
CL54351818P427E*9 82.9 2700 K 90 9791 10528 51.2 1620 127
CL54351818P430E*9 82.9 3000 K 90 10023 10777 51.2 1620 130
CL54351818P435E*9 82.9 3500 K 90 10177 10943 51.2 1620 132
CL54351818P440E*9 82.9 4000 K 90 10254 11026 51.2 1620 133
CL54351818P450E*9 82.9 5000 K 90 10408 11192 51.2 1620 135
CL54351818P457E*9 82.9 5700 K 90 10485 11275 51.2 1620 136

COB Bridgleux Super Bright 80W CL Series 4



COB Bridgleux Super Bright 80W CL Series 5

COB Bridgleux Super Bright 80W CL Series 6

5.1 Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



COB Bridgleux Super Bright 80W CL Series 7

CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1























































COB Bridgleux Super Bright 80W CL Series 8


6.1 Table 39: Maximum Ratings


COB Bridgleux Super Bright 80W CL Series 9

Notes for Table 12:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.



COB Bridgleux Super Bright 80W CL Series 10





COB Bridgleux Super Bright 80W CL Series 11



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



COB Bridgleux Super Bright 80W CL Series 12



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL



COB Bridgleux Super Bright 80W CL Series 13



COB Bridgleux Super Bright 80W CL Series 14

COB Bridgleux Super Bright 80W CL Series 15

Product Packing and Labeling
