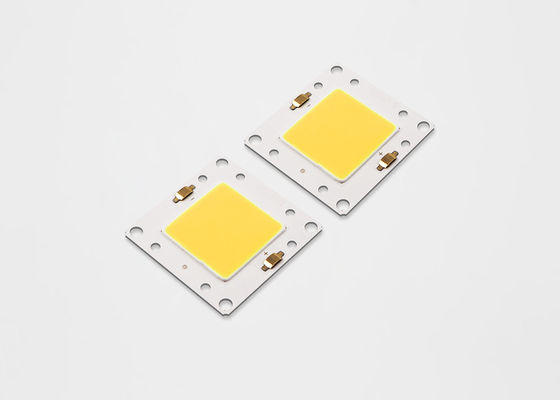

High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 0

• Efficacy of 130 lm/W typical for 3000K, 80CRI

• Compact high flux density light source

• Uniform, high quality illumination

• High voltage or Low voltage DC operation

• Product series and company logo on the front

• RoHS compliant



- LED lights are characterized by low voltage and high brightness. A 10-20 watt LED light source emits light equivalent to a 30-120 watt incandescent lamp. The lighting effect of LED is more than 90% energy-saving than incandescent lamps, and more than 70% energy-saving than energy-saving lamps. It is a real energy-saving light source.
- No damage, no mercury ions or mercury ions may leak and other public hazards during the manufacturing process of the bulb. The manufacture of LED epoxy resin belongs to organic polymer compounds, hydrochloric acid phosphorus solvents and most
- Stable, not easy to be damaged, can be recycled even after aging, will not pollute the environment
- LED uses solid-state semiconductor chips to convert electrical energy into light energy, and is encapsulated with epoxy resin, which can withstand high-strength mechanical shocks.



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 1



The part number designation for TYF ML Series LED arrays is explained as follows:



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 2

High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 3



ITEM NO. P(W) CCT(K) CRI MIN (lm)



MAX (lm)

VOLTAGE(V) CURRENT(mA) (lm/W)
HF40251006PB 30 3000 K 70 3186 3540 29.8 960 118
HF40251006PB 30 3500 K 70 3267 3630 29.8 960 121
HF40251006PB 30 4000 K 70 3321 3690 29.8 960 123
HF40251006PB 30 5000 K 70 3375 3750 29.8 960 125
HF40251006PB 30 5700 K 70 3429 3810 29.8 960 127
HF40251006PB 30 6500 K 70 3375 3750 29.8 960 125
HF40251006PB 30 3000 K 80 2916 3240 29.8 960 108
HF40251006PB 30 3500 K 80 2997 3330 29.8 960 111
HF40251006PB 30 4000 K 80 3051 3390 29.8 960 113
HF40251006PB 30 5000 K 80 3105 3450 29.8 960 115
HF40251006PB 30 5700 K 80 3159 3510 29.8 960 117
HF40251006PB 30 6500 K 80 3105 3450 29.8 960 115
HF40251010PB 50 3000 K 70 5220 5800 29.8 1600 116
HF40251010PB 50 3500 K 70 5355 5950 29.8 1600 119
HF40251010PB 50 4000 K 70 5445 6050 29.8 1600 121
HF40251010PB 50 5000 K 70 5535 6150 29.8 1600 123
HF40251010PB 50 5700 K 70 5625 6250 29.8 1600 125
HF40251010PB 50 6500 K 70 5535 6150 29.8 1600 123
HF40251010PB 50 3000 K 80 4770 5300 29.8 1600 106
HF40251010PB 50 3500 K 80 4905 5450 29.8 1600 109
HF40251010PB 50 4000 K 80 4995 5550 29.8 1600 111
HF40251010PB 50 5000 K 80 5085 5650 29.8 1600 113
HF40251010PB 50 5700 K 80 5175 5750 29.8 1600 115
HF40251010PB 50 6500 K 80 5085 5650 29.8 1600 113



Chip LED Cob Product advantages:

1. Good thermal performance and wide hot channel.

2. The spot is uniform.

3. Energy saving and environmental protection, high light efficiency.

4. High brightness, low light decay, polished.

5. Easy to use and easy to install.

6. Strong antistatic ability.



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 4

5.1 Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 5

CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1





















































High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 6


6.1 Table 39: Maximum Ratings


High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 7

Notes for Table 39:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 8



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 9



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 10



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 11



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 12



Product Packing and Labeling



High Flux High Power Cob LED 50W LM80 HF4027JP15H ANSI SDCM 13
