120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip

Description

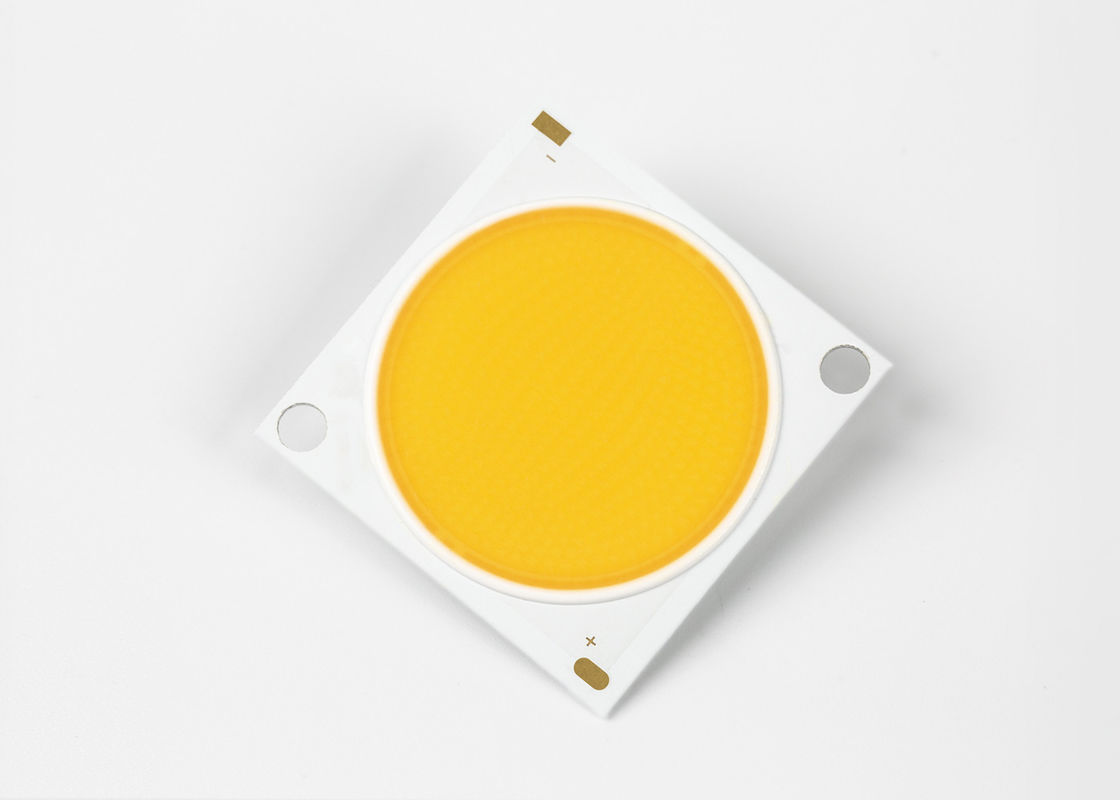

Power: 100-120W Emitting Color: Warm White,Natural White,Cool White,Blue,Pink
Chip Material: InGaN,Bridgelux,Epileds Type: COB LED
Color Temperature: 6000-6500K,3500K,2800-7000k,Full Spectrum Color Rendering Index(ra): 80,90,95
Viewing Angle(°): 140 Voltage: 32-36V
Application: Track Light, Down Light, Street Light Product Name: COB LED
Warranty: 5 Years Lifespan: 50000hours
High Light:

cob led chip

,

led light chips

100W COB 120W LED CHIPS CLU058 bridlgeux 80w super high lumen 160lm/w Chips LED COB LM80 5 years warranty



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 0



• Efficacy of 160 lm/W typical for 3000K, 80CRI

• Compact high flux density light source

• Uniform, high quality illumination

• Minimum 70, 80, and 90 CRI options

• StreaCLined thermal path

• ENERGY STAR® / ANSI compliant color binning

  structure with  3 SDCM standard

• More energy efficient than incandescent, halogen

  and fluorescent lamps

• High voltage or Low voltage DC operation

• Product series and company logo on the front

• RoHS compliant



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 1



The part number designation for TYF ML Series LED arrays is explained as follows:



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 2

120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 3





Part Number

Typical Power (W) Nominal CCT (K)



CRI

Minimum Pulsed Flux (lm) Typical Pulsed Flux (lm) Typical Voltage (V) Nominal Current (mA) Typical Efficacy (lm/W)
CL54351825P430E*7 115.2 3000 K 70 12336 13264 51.2 2250 160
CL54351825P435E*7 115.2 3500 K 70 12490 13430 51.2 2250 162
CL54351825P440E*7 115.2 4000 K 70 12567 13513 51.2 2250 163
CL54351825P450E*7 115.2 5000 K 70 12721 13679 51.2 2250 165
CL54351825P457E*7 115.2 5700 K 70 12798 13761 51.2 2250 166
CL54351825P465E*7 115.2 6500 K 70 12721 13679 51.2 2250 165
CL54351825P422E*8 115.2 2200 K 80 10485 11274 51.2 2250 136
CL54351825P427E*8 115.2 2700 K 80 11256 12103 51.2 2250 146
CL54351825P430E*8 115.2 3000 K 80 11565 12435 51.2 2250 150
CL54351825P435E*8 115.2 3500 K 80 11719 12601 51.2 2250 152
CL54351825P440E*8 115.2 4000 K 80 11950 12850 51.2 2250 155
CL54351825P450E*8 115.2 5000 K 80 12027 12932 51.2 2250 156
CL54351825P457E*8 115.2 5700 K 80 12181 13098 51.2 2250 158
CL54351825P465E*8 115.2 6500 K 80 12027 12932 51.2 2250 156
CL54351825P422E*9 115.2 2200 K 90 9329 10031 51.2 2250 121
CL54351825P427E*9 115.2 2700 K 90 10100 10860 51.2 2250 131
CL54351825P430E*9 115.2 3000 K 90 10408 11192 51.2 2250 135
CL54351825P435E*9 115.2 3500 K 90 10562 11357 51.2 2250 137
CL54351825P440E*9 115.2 4000 K 90 10639 11440 51.2 2250 138
CL54351825P450E*9 115.2 5000 K 90 10794 11606 51.2 2250 140
CL54351825P457E*9 115.2 5700 K 90 10871 11689 51.2 2250 141



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 4



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 5



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 6

5.1 Color Binning Information


Figure 1: Graph of Test Bins in xy Color Space (Pulsed Test Conditions, Tj = 25°C)



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 7

CIE1931-x



Table 38: 2-Step to 5-step MacAdam ellipse color bin definitions for TYF CoB Core Range



Nominal

CCT

Center Point MAJOR AXIS (a , b)

Ellipse







Rotation Angel,θ

X Y 2-Step 3-Step 5-Step
2200K 0.5018 0.4153 (0.0048 , 0.0027) (0.0072, 0.0041) (0.0120, 0.0067) 39.9
2500K 0.4806 0.4141 (0.0050, 0.0027) (0.0076, 0.0041) (0.0126, 0.0068) 53.1
2700K 0.4575 0.4101 (0.0053, 0.0027) (0.0080, 0.0041) (0.0133, 0.0068) 54.1
3000K 0.4338 0.4030 (0.0057, 0.0028) (0.0086, 0.0042) (0.0142, 0.0069) 53.7
3500K 0.4073 0.3917 (0.0062, 0.0028) (0.0093, 0.0041) (0.0155, 0.0069) 54.0
4000K 0.3818 0.3797 (0.0063, 0.0027) (0.0093, 0.0042) (0.0157, 0.0068) 53.4
5000K 0.3447 0.3553 (0.0054, 0.0024) (0.0081, 0.0035) (0.0135, 0.0059) 59.8
5700K 0.3290 0.3417 (0.0048, 0.0021) (0.0072, 0.0032) (0.0119, 0.0052) 58.8
6500K 0.3123 0.3282 (0.0044, 0.0018) (0.0066, 0.0027) (0.0110, 0.0045) 58.1































































120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 8


6.1 Table 39: Maximum Ratings


120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 9

Notes for Table 39:

  • Driven the arrays at higher currents however lumen maintenance may be reduced.
  • Proper current derating must be observed to maintain junction temperature below the maximum
  • Pulsed operation with a peak drive current equal to the stated peak pulsed forward current is acceptable if the pulse on-time is ≤1ms per cycle and the duty cycle is ≤10%
  • Light emitting diodes are not designed to be driven in reverse voltage and will not produce light under this condition. Maximum rating provided for reference only.



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 10



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 11



Notes: 1. All dimension tolerance is ±0.2mm unless otherwise noted. 2. Tc measurement point at cathode



120W 100w Chip Led , CLU058 Bridlgeux 80w Super High Lumen Led Power Chip 12



RECOMMENDED SOLDERING CONDITION

For manual soldering. Please use lead-free soldering and the soldering shall be implemented using a soldering bit at a

temperature lower than 350C, and shall be finished within 3.5 seconds for one land. No external force shall be applied

to resin part while soldering is implemented. Next process of soldering should be carried out after the product has

return to ambient temperature. CAUTION: TEMPERATURE CONTROL
