High Brightness SMD LED Chip LM 80 Passed General Use For Digital Indicators

High Brightness SMD LED Chip LM 80 Passed General Use For Digital Indicators
High Brightness SMD LED Chip LM 80 Passed General Use For Digital Indicators

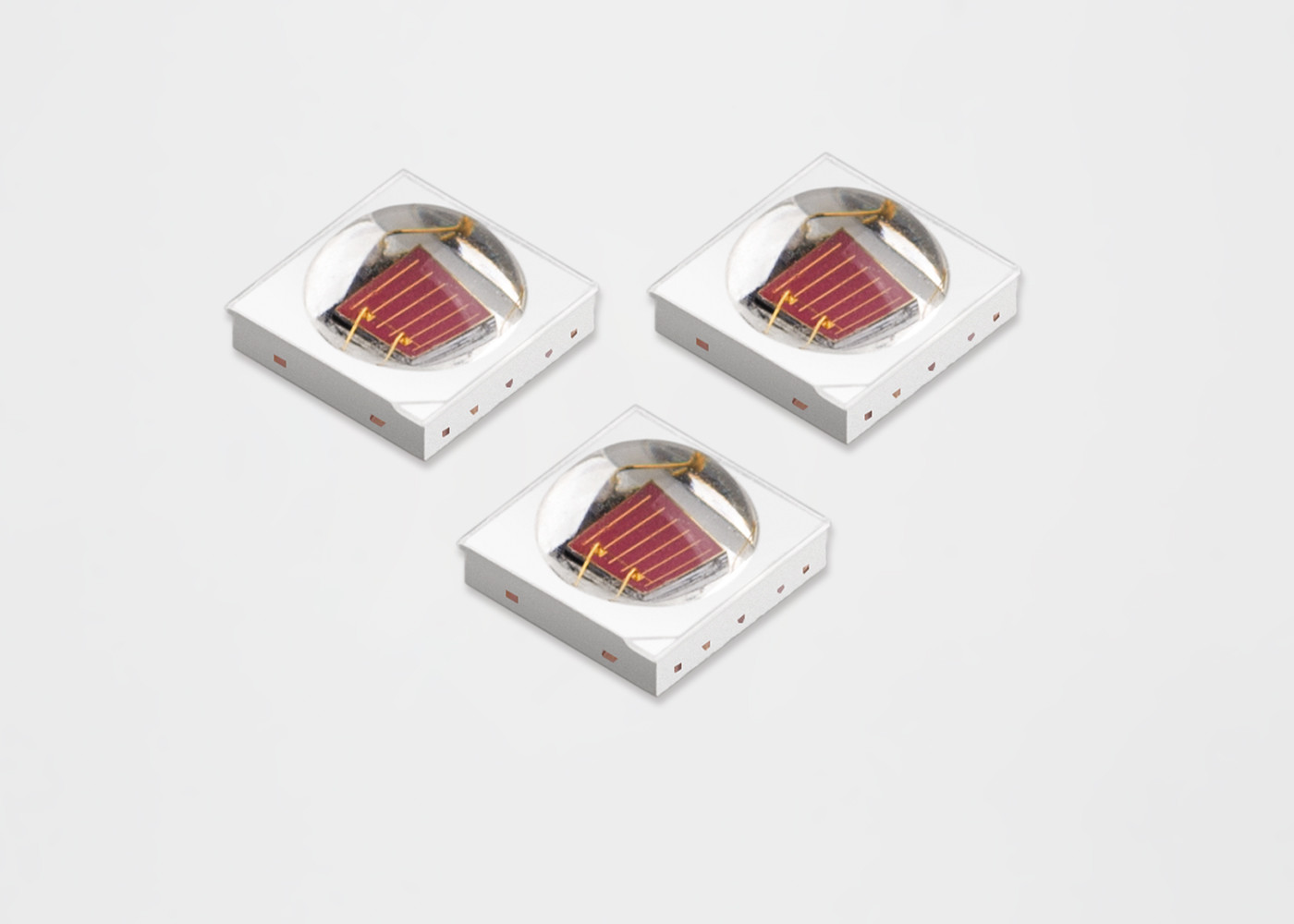

Large Image :  High Brightness SMD LED Chip LM 80 Passed General Use For Digital Indicators

Product Details:
Place of Origin: China
Brand Name: TYF
Certification: LM 80
Model Number: SMD 3535
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 4k/reel
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000000000

High Brightness SMD LED Chip LM 80 Passed General Use For Digital Indicators

Description
High Light:

led smd 5050

,

smd cob led

1-2W High Lumen SMD 3535 series LM 80 passed




No Product Power(W)

Max.
Power

Series&
Parallel

Voltage
(V)

Current
(mA)

Ra

CCT
(K)

350MA
(lm)

700MA
(lm)

Reference
1

3535-TC
Series

1 1 1S1P 2.8-3.4 350 70 6500-8000 140-150 /
2 3800-6500 150-160 / 452.5-455nm/440-460mw
3 2600-3800 140-150 /
4 1 2 1S1P 2.8-3.4 350 70 6500-8000 150-160 260-280
5 3800-6500 160-170 280-300 452.5-455nm/420-440mw
6 2600-3800 150-160 260-280
7 1 2 1S1P 2.8-3.4 350 70 6500-8000 140-150 240-260
8 3800-6500 150-160 260-280 452.5-455nm/750-800mw
9 2600-3800 140-150 240-260
10 1 2 1S1P 2.8-3.4 350 70 6500-8000 150-160 260-280
11 3800-6500 160-170 280-300 455-457.5nm/480-500mw
12 2600-3800 150-160 260-280
13 3535-High lm series 1 2 1S1P 2.8-3.4 350 70 6500-8000 160-170 300-320
14 3800-6500 170-180 320-340 452.5-455nm/230-240mw
15 2600-3800 160-170 300-320
16 1 2 1S3P 2.8-3.4 350 70 6500-8000 170-180 320-340
17 3800-6500 180-190 340-360 452.5-455nm/230-240mw
18 2600-3800 170-180 320-340
19 3535-colorful series 1 2 1S1P 1.8-2.2 350 / 620-630 60-70 120-130
20 1S1P 2.8-3.2 350 / 520-530 130-140 200-220 522.5-525nm/39000-43000mcd
21 1S1P 3.0-3.4 350 / 455-465 20-30 30-40 455-457.5nm/480-500mw
22 3535-RGB series 2 3 1S3P 2.8-3.4 350 / 620-625 40-50 /
23 520-530 70-80 /
24 455-465 10-20 /


Applications:

Street Light
High Bay
UFO
Flood Light


Specifications:

Key Specifications/Special Features:
1. LM 80-9000 hours passed,long lifespan,more than 54000 hours
2. Good color consistency, High CRI,High LM
3. 99.99% goldwire from Heraeus inside ,better perfermance
4. Customer design is welcomed



Primary Competitive Advantages:
Strong R&D Forces

  • One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
  • World standard CNAS Accredited Laboratory.
  • Launch highly-competitive new products seasonally.
  • Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.

Extensive Application Experience & Quality Commitment

  • Strict control over raw materials selection.
  • 3 Years Warranty at least.
  • Reliable long life span; Good Quality Raw Material.
  • More than 13 years' experience in LED Field.
  • Supported many government lighting projects.

Outstanding Service Level

  • Professional Sales Team backing up with top experienced engineers in LED field.
  • Best Quality & Best Price & Best Service.
  • Professional customization and OEM service.

More Info. about TYF

  • Top 3 LED manufacturer
  • Obtained 200+ patents
  • 12000+ square meters
  • SGS, TUV, BV, ISO9001 audited factory
  • 400+ employees
  • 3 production line, SMD workshop, COB workshop, SMT workshop
  • 100KK SMD LED per month
  • 3KK COB LED per month
  • 10KK other LEDs per month
