No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode
No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode

Large Image :  No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode

Product Details:
Place of Origin: CHINA
Brand Name: TYF
Certification: CE CB ROHS
Model Number: D5284
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Kraft paper Box
Delivery Time: 20 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10,000 pieces per month

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode

Description
Model: TYF D5284 Part Number: D5284C2023E0DA30582
Dim: 52*84mm Voltage: 220/230v
Wattage: 50W Color: Pink
PF: >0.9 THD: 35%
Dimming: NO
High Light:

high power led module

,

waterproof led module

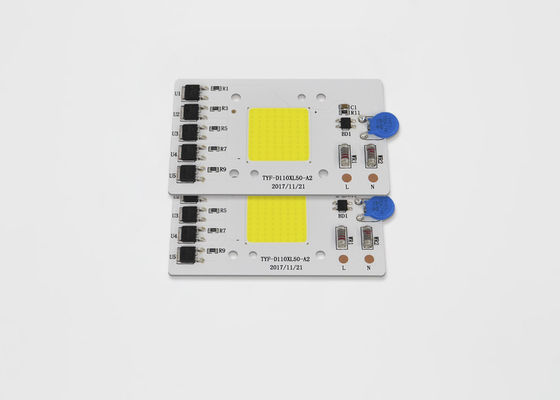

For Plant Grow Light Diode No Driver 20W 30W 50W 110V / 220V 230V Direct Input 50W 380-840nm Full Spectrum AC COB LED Ch



No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 0

  • Connects Directly to AC Line Voltage
  • High Power Efficiency & Factor
  • Long Life Time
  • Simple BOM
  • Rosh Compliant
  • Line Voltage Regulation
  • Easy assembly
  • Lead Free Product



No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 1



DOB
X1 X2-X5 X6 X7-X8 X9-X10 X11-X12 X13X14 X15X16 X17 X18 X19 X20 X21X22
Product Code

Client

Code

IC Code

Power

Code



Voltage Code



Serial Num.

LED

Code



CCT

Code



SDCM CRI Code Luminance Year Month

Serial

Num.

Module Code Case Code Serial Num.

Serial Num.





1) product code: C=Client Module D=Self Module

2) Client Code & Module Code: if =C then 4 digit for client code else for self module code

3)IC Code: one character for IC

4)Power Code:

Power Code
01—99W 100W 120W 150W 200W 250W 300W 350W 400W 450W 500W
01-99 A0 B0 C0 D0 E0 F0 G0 H0 J0 K



5)Voltage Code:11=110V,12=120V,22=220V,23=230V

6)CCT Code

CCT Code(K)

1800

-

2000

2000

-

2200

2200

-

2400

2500

-

2700

2700

-

2900

3000

-

3200

3200

-

3400

3500

-

3700

4000

-

4300

4500

-

4800

5000

-

5500

5800

-

6300

6000

-

6500

6500

-

7000

18 20 22 25 27 30 32 35 40 45 50 58 60 65



No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 2

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 3

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 4



Chromaticity Bins



TYF complies with the ANSI C78.377A standard for its chromaticity bin structure. For each ANSI quadrangle for the CCT range of 2700K to 6500K, TYF provides 5 Bins and 3 Bins.



Figure 4-1-1 Chromaticity Bin

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 5



Table 4-1-2 5 step Bins

CCT Steps Cx Cy a b theta
2700K 5 0.4578 0.4101 0.01350 0.00700 53.70
3000K 5 0.4338 0.403 0.01390 0.00680 53.22
3500K 5 0.4073 0.3917 0.01545 0.00690 54.00
4000K 5 0.3818 0.3797 0.01565 0.00670 53.72
5000K 5 0.3447 0.3553 0.01370 0.00590 59.62
5700K 5 0.3287 0.3417 0.01243 0.00533 59.09
6000K 5 0.3123 0.3282 0.01115 0.00475 58.57



Table 4--1-3 3step Bins

CCT Steps Cx Cy a b theta
2700K 3 0.4578 0.4101 0.00810 0.00420 53.70
3000K 3 0.4338 0.403 0.00834 0.00408 53.22
3500K 3 0.4073 0.3917 0.00927 0.00414 54.00
4000K 3 0.3818 0.3797 0.00939 0.00402 53.72
5000K 3 0.3447 0.3553 0.00822 0.00354 59.62
5700K 3 0.3287 0.3417 0.00746 0.00320 59.09
6000K 3 0.3123 0.3282 0.00669 0.00285 58.57



Typical Electrical & Optical Curves

Figure 4-2-1 Relative Power vs. Voltage, Ta =25℃

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 6



Figure 4-2-2 Relative Luminous Flux vs. Voltage, Ta =25℃

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 7



Figure 4-2-3 Radiant Pattern, Ta =25℃

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 8











































No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 9

ITEM SYMBOL UNIT TYPICAL Value
Input Voltage Vin V 230
Input Current IF mA 236.2
Operating Frequency F Hz 50/60
Input Power P W 49.49
Power Factor PF 0.911
Total Harmonic Distortion THD 45.7%
Dimming Type RNA □ TRIAC □ PWM □ 0-10V □ DALI □ DMX □ Smart □ Other
Surge Capacity Vs KV 1
Electric Strength(AC) Ve KV 1.5
Operating/Case Temperature Ta/Tc 25/85
LED Parameters COB
Luminous Flux Φv Lm 4680.9
Luminous Efficiency ηv Lm/w 94.57
Color Temperature CCT K 6381
Color Rendering Index Ra/CRI 70.2/59.0
Light Distribution - -
Viewing Angle 2θ 1/2 Deg. -



Note:

1) Operating Voltage doesn't indicate the maximum voltage which customers use but means tolerable voltage according to each country’s voltage variation rate. It is recommended that the solder pad temperature should be below 85℃.

2) Color bins are defined at transient operation.

3) The tolerance of measurement at our tester is Φv+/-10% and Ra+/-2.

4) Tolerance of ±5% on Power dissipation.

5) Φv is the total luminous flux output measured with an integrated sphere.

6) Surge Capacity in accordance with IEC61000-4-5.

7) The Variants Modules Parameters please reference table2-2.



No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 10

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 11

Notes:

1) All dimensions are in millimeters.(Tolerance:±0.2mm)

2)Scale: None



No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 12

Note:

1) TYF Opto. DOB Module is Recommended to keep the junction temperature under maximum junction temperature spec.(Table 2-4).

LED lead temperature and IC top case temperature measured with thermocouple. LED and IC unction temperatures can be calculated using the formulas as follow.

Ts_max=Tj_max-Rθj-s * Pd

For Example:

If LED lead temperature and IC top case temperature are 90℃ then the LED junction temperature

Tj=Ts_max+Rθj-s*Pd=90℃ + 12 ℃/W* 1 W = 102 ℃

and the IC junction temperature

Tj=Ts_max+Rθj-s*Pd=90 ℃ + 15℃/W*2 W= 120 ℃



Silicone Resin of DOB (AC-COB) Handing

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 13

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 14

No Driver AC LED Module Direct Input Full Spectrum For Plant Grow Light Diode 15
