Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K

Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K
Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K

Large Image :  Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K

Product Details:
Place of Origin: CHINA
Brand Name: TYF
Certification: CE CB ROHS
Model Number: D5284
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Kraft paper Box
Delivery Time: 20 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10,000 pieces per month

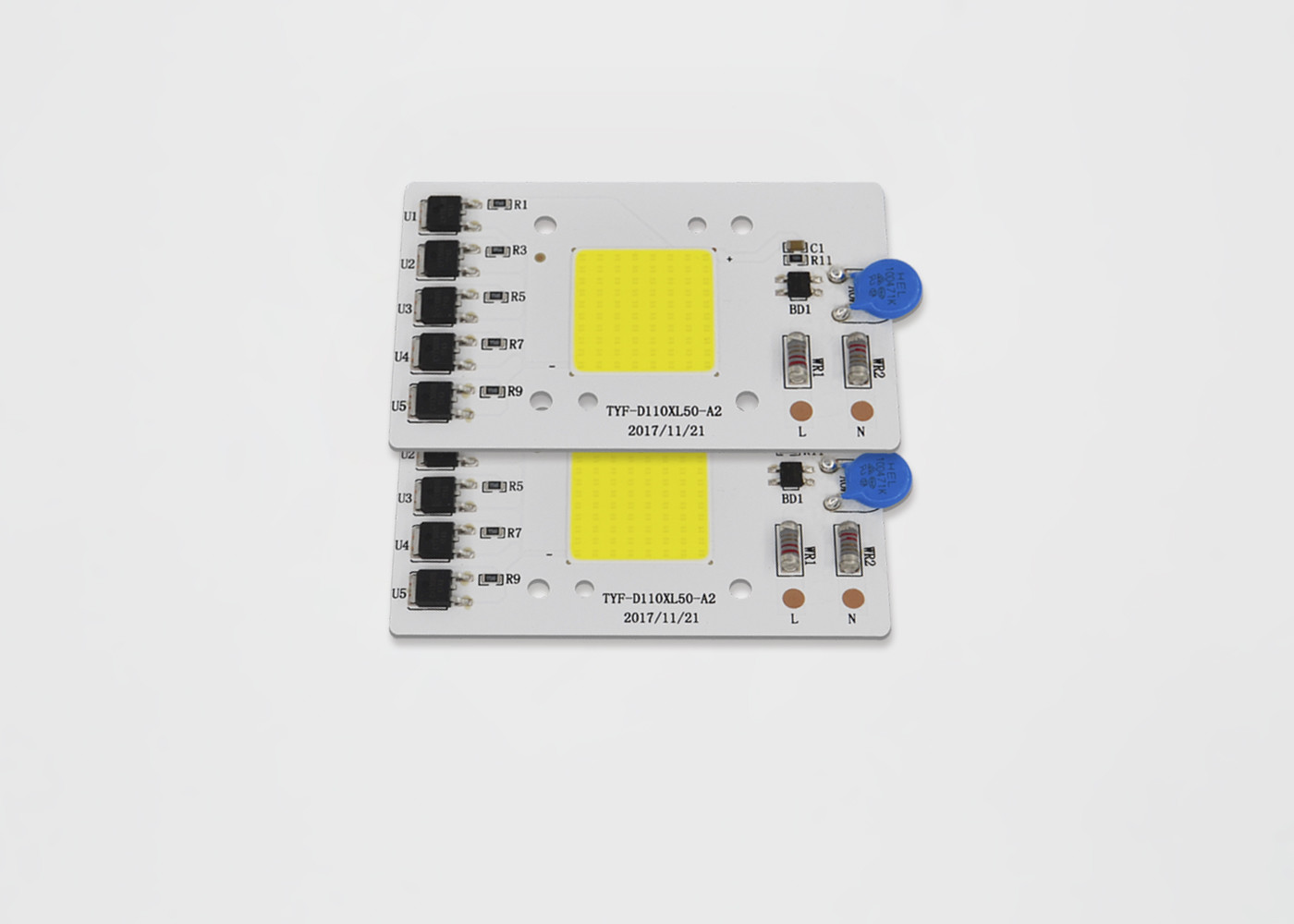

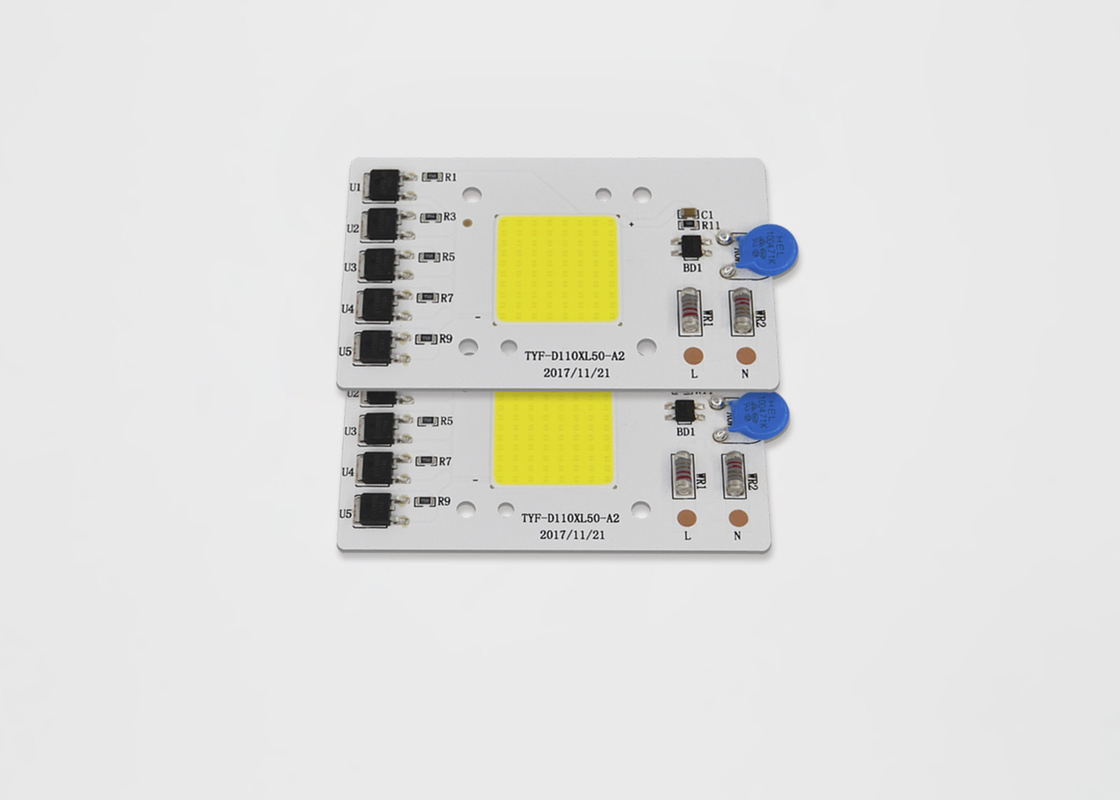

Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K

Description
Model: TYF D5284 Part Number: D5284C2023E0DA30582
Dim: 52*84mm Voltage: 220/230v
Wattage: 50W CCT: 6000K
PF: >0.9 THD: 35%
Dimming: NO
High Light:

high power led module

,

waterproof led module

1. Details:

Item name: AC COB module for led outdoor lamps

Product type: AC module

Voltage: 110V/220v

Place of Origin: ShenZhen, China

Model: TYF D5284

MOQ: 100 Pieces



1.1 Product Features

  • Connects Directly to AC Line Voltage
  • High Power Efficiency & Factor
  • Long Life Time
  • Simple BOM
  • Rosh Compliant
  • Line Voltage Regulation
  • Easy assembly

2. Applications:





3. Electrical & Optical Characteristics(Ta=25) Table 2-1

ITEM SYMBOL UNIT TYPICAL Value
Input Voltage Vin V 230
Input Current IF mA 236.2
Operating Frequency F Hz 50/60
Input Power P W 49.49
Power Factor PF 0.911
Total Harmonic Distortion THD 45.7%
Dimming Type RNA □ TRIAC □ PWM □ 0-10V □ DALI □ DMX □ Smart □ Other
Surge Capacity Vs KV 1
Electric Strength(AC) Ve KV 1.5
Operating/Case Temperature Ta/Tc 25/85
LED Parameters COB
Luminous Flux Φv Lm 4680.9
Luminous Efficiency ηv Lm/w 94.57
Color Temperature CCT K 6381
Color Rendering Index Ra/CRI 70.2/59.0
Light Distribution - -
Viewing Angle 2θ 1/2 Deg. -



3.1 Absolute Maximum Ratings(Ta=25) Table 2-4



ITEM SYMBOL UNIT Value
Power Dissipation Pd W 52.5
AC Current(RMS) IF mA 248.5
AC Voltage(RMS) Vin V 220~240
LED Junction Temperature Tj-LED 120
IC Junction Temperature Tj-IC 150
Top of the IC temperature IC Tp 100
LED Thermal Resistance (Junction / Soldering point) Rthj-s ℃/W 20
IC Thermal Resistance (Junction / Soldering point) Rthj-s ℃/W 40
Operating Temperature To -20~+85
Storage Temperature Ts -40~+100
ESD Sensitivity(HBM) Vesd KV ±2
Soldering Temperature(Reflow) Tsld -
Soldering Temperature(Hand) Tsld 350 3S



4. Optical properties



4.1 Chromaticity Bins



TYF complies with the ANSI C78.377A standard for its chromaticity bin structure. For each ANSI quadrangle for the CCT range of 2700K to 6500K, TYF provides 5 Bins and 3 Bins.



Figure 4-1-1 Chromaticity Bin

Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K 0



Table 4-1-2 5 step Bins

CCT Steps Cx Cy a b theta
2700K 5 0.4578 0.4101 0.01350 0.00700 53.70
3000K 5 0.4338 0.403 0.01390 0.00680 53.22
3500K 5 0.4073 0.3917 0.01545 0.00690 54.00
4000K 5 0.3818 0.3797 0.01565 0.00670 53.72
5000K 5 0.3447 0.3553 0.01370 0.00590 59.62
5700K 5 0.3287 0.3417 0.01243 0.00533 59.09
6000K 5 0.3123 0.3282 0.01115 0.00475 58.57



Table 4--1-3 3step Bins

CCT Steps Cx Cy a b theta
2700K 3 0.4578 0.4101 0.00810 0.00420 53.70
3000K 3 0.4338 0.403 0.00834 0.00408 53.22
3500K 3 0.4073 0.3917 0.00927 0.00414 54.00
4000K 3 0.3818 0.3797 0.00939 0.00402 53.72
5000K 3 0.3447 0.3553 0.00822 0.00354 59.62
5700K 3 0.3287 0.3417 0.00746 0.00320 59.09
6000K 3 0.3123 0.3282 0.00669 0.00285 58.57



4.2 Typical Electrical & Optical Curves

Figure 4-2-1 Relative Power vs. Voltage, Ta =25℃

Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K 1



Figure 4-2-2 Relative Luminous Flux vs. Voltage, Ta =25℃

Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K 2



Figure 4-2-3 Radiant Pattern, Ta =25℃

Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K 3















































5. Key Specifications/Special Features:



1. Drive directly to AC line Voltage:120/230V, No AC/DC drivers

2. With OTR,OVP,OCP,Surge Capacity, 1000V

3. High PF, CE/UL certifications

4. Good color consistency, High CRI

5. Ambient Temperature: -20-50℃, case temperature: <70℃

6. Small Size,Flexible design,PCB size, CCT, Power, can be customized according to client’s desires.

7. Life time> 30,000 hours



6. Packaging



TYF Opto. LED modules products, packed in plastic Tray, according to different size, XX PCs each plastic Tray, as shown in the following. products without plastic box packed in bubble bags, in order to prevent the outside pressure, choose different bubble bag, according to the product size in each pack of XX products, packaged product will be stored in the form of carton and sealed, as shown in the following.



1) xx PCS LED module per Tray 4) Box information & packing

2)Tray stack and taping, XX LED module

trays and additional 1 dummy trays each up of

box. Add silica gel (1 each) on top of the tray

3) Sealing packing

Chip on board 220V 230V 110V AC 20W 30W 50W led module Flood Light 3000K 4000K 6000K 4
